Product Information

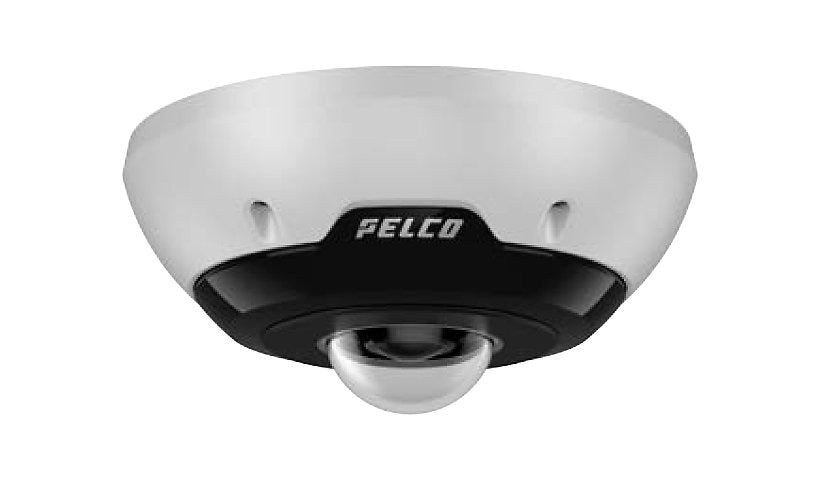

The Pelco Sarix 3 Series SRXF3-12360-ES is a 12 MP fisheye recording 3520 x 3520 at 30 fps with a 1/1.6 inch sensor and a 182 degree view. It has 120 dB WDR, IR up to 72 ft, dewarping, a built in mic, audio in and out, alarm I/O and 2 microSD slots, and runs on 12 to 24 V DC or PoE Class 4. Vandal proof, indoor or outdoor.
Key Features
- 12 MP, 3520 x 3520
- 182 degree fisheye
- 120 dB WDR
- IR up to 72 ft, mic
- 2 microSD slots
- 12 to 24 V DC or PoE
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco Sarix 3 Series
Model: SRXF3-12360-ES
Packaged Quantity: 1
Color: RAL 9002
Color Category: Black, Gray
Network and Communication
Connectivity Technology: Wired
Features: 120 dB wide dynamic range, 2 microSD card slots, 64 privacy zones, 802.1x authentication, Auto white balance, Backlight Compensation (BLC), De-warping, Digest authentication, Firmware encryption, Flicker control adjustable (50Hz/60Hz), High Definition Stream Management (HDSM), HTTPs encryption, Manual white balance, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pixel motion, Polycarbonate/aluminium housing, Secure Boot, Signed firmware, Smart Compression, SmartCodec technology, SureVision Technology, Trusted Platform Module (TPM), User access log, Wide Dynamic Range (WDR), WS authentication
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, DHCP, DNS, HSTS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SNMP 2c, SNMP 3, SOAP, TCP/IP, UDP/IP, Zeroconf
Ports: Audio line in/line out, LAN/power - RJ-45, USB 2.0
Power
Low Voltage Power: DC 12 - 24 V / PoE Class 4
Battery Chemistry: Manganese
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Technical Information
Angular Field of View (H, Max, Degree): 182
Angular Field of View (V, Max, Degree): 182
Focus Modes: Fixed focus
Infrared Distance: 72 ft
Infrared LEDs: Yes
Max Focal Length: 1.74 millimetre
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Panning Range (degree): 360
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR, 0.19 lux - B&W - F2.0, 0.38 lux - color - F2.0
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/1.6"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/2.0
Sensor Size (metric): 10.07 mm (1/1.6")
Digital Video Capture Resolution: 1536 x 1248, 2048 x 1248, 3072 x 1248, 320 x 320, 3520 x 1920, 3520 x 3520, 384 x 312, 384 x 384, 512 x 280, 512 x 312, 512 x 512, 704 x 384, 720 x 720, 768 x 312
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/8000 second (time unit)
Shutter Speed (Min): 1/6 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: G.711, OPUS, PCM
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 3520 x 3520
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 100% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Vandal-proof
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.8 inch
Width: 6 inch
Depth: 6 inch
Weight: 32.31 ounce
