Product Information

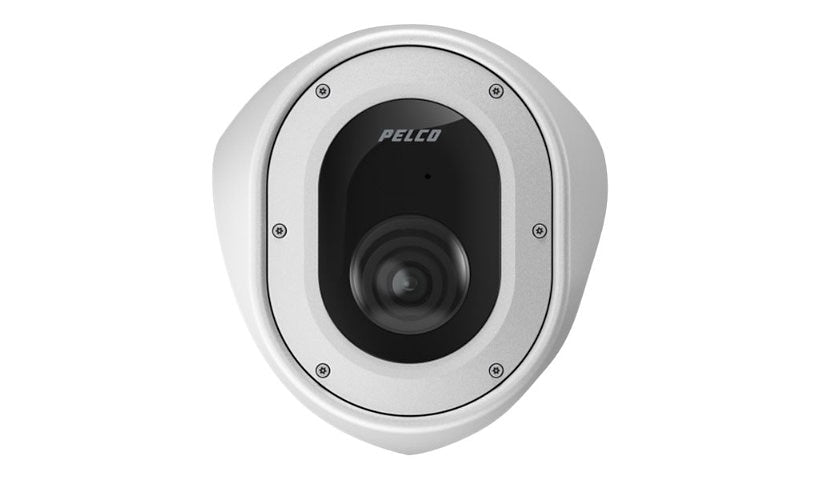

The Pelco Sarix Corner Camera 3 Series IBD332-1 is a vandal resistant 3 MP corner camera recording 2048 x 1536 at 30 fps through a 2.3 mm lens with a 135 degree view, built in steel with an IK10+ rating. It has IR up to 49 ft, a heater, CorridorView, sabotage detection, a mic with two way audio and alarm I/O, on 12 V DC, 24 V AC or PoE Class 3.
Key Features
- 3 MP, 2048 x 1536
- 2.3 mm, 135 degree view
- Corner mount, IK10+
- IR up to 49 ft, heater
- Mic, two way audio
- 12 V DC, 24 V AC or PoE
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco Sarix Corner Camera 3 Series
Model: IBD332-1
Packaged Quantity: 1
Color: Pantone 427C, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 3D Digital Noise Reduction Technology, Camera Sabotage Detection, Constant Bit Rate (CBR), CorridorView, Heater, Image flip, Image mirror, Infrared cut filter, ONVIF (Profile G) support, ONVIF (Profile Q) support, ONVIF (Profile S) support, Progressive scanning, Smart Compression, Text Caption Overlay, Triple video stream, Variable Bit Rate (VBR), White balance
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LDAP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 2c, SNMP 3, SSH, SSL, TCP/IP, UDP/IP, UPnP
Ports: Audio line in - terminal block, Audio line out - terminal block, LAN/power - RJ-45, USB 2.0
Host Interface: USB 2.0
Power
Low Voltage Power: DC 12 V / AC 24 V / PoE Class 3
Power Consumption Operational: 13 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 49 ft
Infrared LEDs: Yes
Auto Iris Control: P-Iris
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 135
Angular Field of View (V, Min, Degree): 95
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.014 lux - B&W, 0.027 lux - color
Total Pixels: 3,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: PS CMOS
Lens Aperture: F/2.2
Min Focal Length: 2.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/8196 second (time unit)
Shutter Speed (Min): 1/7 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: G.711u
Audio Support Features: Built-in microphone, Two-way audio capability
Touchscreen: No
Max Video Resolution: 2048 x 1536
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95%
Physical Characteristics
Protection: Water resistant / vandal resistant
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.8 inch
Width: 6.4 inch
Depth: 6.4 inch
Weight: 7.08 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
