Product Information

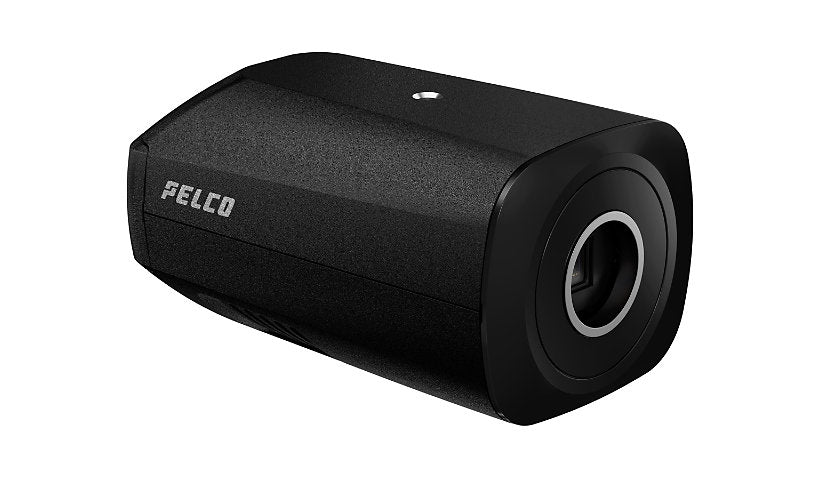

The Pelco Sarix Enhanced 4P SRXE4P-4-IBX-1 is a 4 MP box camera that records 2688 x 1520 at up to 60 fps, with an i-CS lens mount (lens not stated in the listing). It has audio in and out, RS-485, and runs on 12 V DC or PoE Class 3 at up to 13 W. Black finish, TAA compliant.
Key Features
- 4 MP, 2688 x 1520
- Up to 60 fps
- i-CS lens mount
- Audio, RS-485
- 12 V DC or PoE, 13 W
- Black, TAA compliant
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco Sarix Enhanced 4P Series
Model: SRXE4P-4-IBX-1
Packaged Quantity: 1
Color: Powder coated black
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Features: >50dB SNR, 16:9 aspect ratio, 3D digital noise reduction (DNR), 4:3 aspect ratio, 64 privacy zones, 802.1x authentication, Aluminum housing, Auto white balance, Automatic electronic shutter, Backlight Compensation (BLC), Corridor mode, Digest authentication, Direction Violated, Flicker control adjustable (50Hz/60Hz), Intelligent analytics, IR-cut filter, Loitering detection, Manual white balance, Motion Detection, Multi-streaming, Object enter area detection, Object leave area detection, Object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pelco Smart Compression Technology, Plastic housing, Remote Back Focus, Remote zoom, Secure Boot, SureVision Technology, Tamper-detection, Trusted Platform Module (TPM), User access log, Wide Dynamic Range (WDR), WS authentication
Connectivity
Network Interface: Ethernet 100Base-TX/1000Base-T
Protocols: ARP, DHCP, DNS, HSTS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SNMP 2c, SNMP 3, SOAP, TCP/IP, UDP/IP, Zeroconf
Ports: Audio line in/line out, LAN/power - RJ-45, Serial RS-485, USB 2.0
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 13 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Technical Information
Focus Modes: Automatic
Auto Iris Control: P-Iris
Control Interface: RJ-45, RS-485
Motion Detection: Yes
Camera Iris: Auto iris
Lens Mount: I-CS-mount
Minimum Illumination: 0.003 lux - B&W - F1.3, 0.008 lux - color
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: Progressive Scan CMOS
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 1984 x 1488, 2560 x 1440, 2688 x 1520, 368 x 264, 384 x 216, 384 x 288, 512 x 288, 512 x 384, 640 x 360, 640 x 480, 768 x 432, 768 x 576, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/15000 second (time unit)
Shutter Speed (Min): 1/7.5 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: G.711, OPUS, PCM
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Box
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.5 inch
Width: 3 inch
Depth: 4.8 inch
Weight: 19.4 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
