Product Information

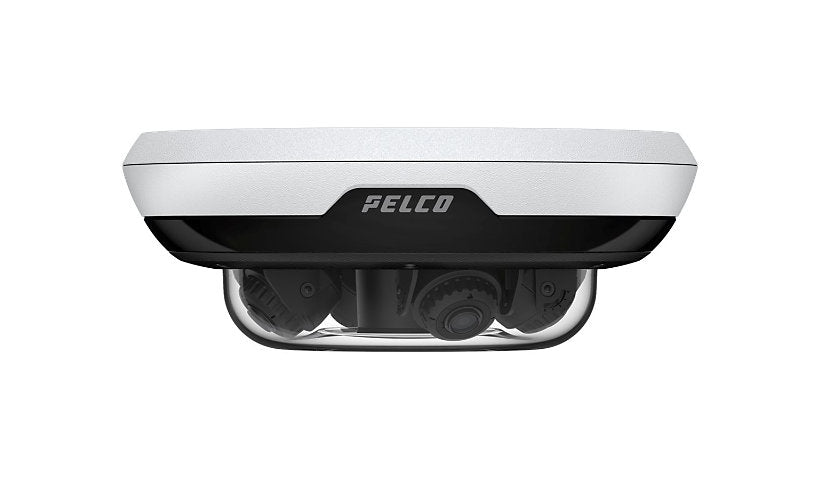

The Pelco Sarix Multi Enhanced SMLE1-15V5-3H is a multisensor dome with three 5 MP sensors producing up to 7776 x 1944, each with a 3.3 to 5.7 mm varifocal lens and remote focus. It has audio and alarm I/O, a vandal resistant housing, and accepts 24 V DC, 24 V AC or PoE+.
Key Features
- 3 x 5 MP sensors
- 7776 x 1944 total
- 3.3 to 5.7 mm lenses
- Remote focus
- Audio, alarm I/O
- 24 V or PoE+, vandal
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco Sarix Multi Enhanced
Packaged Quantity: 1
Color: Pantone 427C
Color Category: Black, Gray
Network and Communication
Connectivity Technology: Wired
Features: 3D Noise Reduction Technology, 4:3 aspect ratio, 64 privacy zones, Aluminum housing, Appearing / disappearing detection, Auto white balance, Backlight Compensation (BLC), Camera Sabotage Detection, Direction Violated, Flicker control adjustable (50Hz/60Hz), Lens Distortion Correction, Loitering detection, Manual white balance, Object Detection, Object enter area detection, Object leave area detection, Object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Secure Boot, SureVision Technology, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 100Base-TX/1000Base-T
Protocols: ARP, DHCP, DNS, HSTS, HTTP, HTTPS, ICMP, IGMPv2, IPv4, IPv6, NPT, RTCP, RTP, RTSP, SOAP, TCP, UDP, Zeroconf
Ports: Audio line in, Audio line out, LAN/power - RJ-45, USB 2.0
Power
Low Voltage Power: DC 24 V / AC 24 V / PoE+
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (H, Max, Degree): 99
Angular Field of View (V, Max, Degree): 69
Focus Modes: Remote
Max Focal Length: 5.7 millimetre
Optical Zoom: 1.7
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 7 to 96
Motion Detection: Yes
Panning Range (degree): -120 to +120
Angular Field of View (H, Min, Degree): 53
Angular Field of View (V, Min, Degree): 39
Camera Iris: Fixed iris
Minimum Illumination: 0.018 lux - B&W - F1.5, 0.02 lux - color - F1.5
Total Pixels: 3 x 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.5-1.9
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 7680 x 1440, 7776 x 1944
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/8000 second (time unit)
Shutter Speed (Min): 1/7.5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: G.711, OPUS, PCM
Touchscreen: No
Max Video Resolution: 7776 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Protection: Vandal / weatherproof
Form Factor: Dome
Camera Mechanical Design: Multi-sensor + pan / tilt
Dimensions and Weight
Height: 1.8 inch
Width: 12 inch
Depth: 12 inch
