Product Information

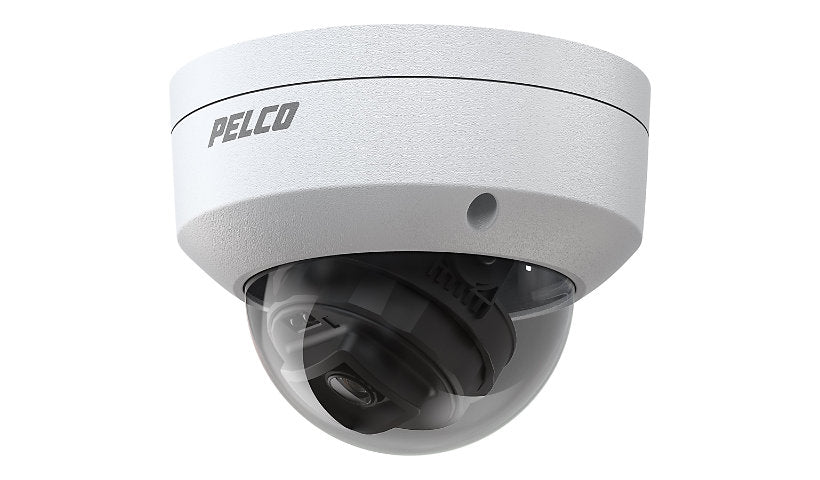

The Pelco Sarix Value IJV223-1ERS is a compact 2 MP vandal proof dome recording 1080p at 30 fps through a 3.6 mm lens with an 81 degree view. It has true WDR, adaptive IR up to 98 ft, defog and tamper detection, and runs on PoE Class 2 at 6.49 W. Cable gland and screws included.
Key Features
- 2 MP, 1080p at 30 fps
- 3.6 mm, 81 degree view
- Adaptive IR up to 98 ft
- True WDR, defog
- Vandal proof
- PoE Class 2
Product Information
Brand: Pelco
Manufacturer: Pelco
Product Line: Pelco Sarix Value
Model: IJV223-1ERS
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Operating System Required: Microsoft Windows 7 / 8 / 10
Features: 3 video streams, 3D digital noise reduction (DNR), Adaptive IR auto adjustment, Brightness control, Camera Tampering Detection, Contrast control, Defog, Digital image rotation, Digital PTZ function, Exposure control, Image flip, Image mirror, Infrared cut filter, NAS-Ready, Notification picture to E-mail, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pelco Smart Compression Technology, Privacy Mask Function, Saturation control, Sharpness control, Signed firmware, User access log, White balance, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CIFS, CoS, DDNS, DHCP, DNS, DSCP, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMB, SMTP, SNMP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 2
Power Consumption Operational: 6.49 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 95
Video Capture: 1920 x 1080 @ 30 fps
Digital Zoom: 48
Tilt: 75
Motion Detection: Yes
Panning Range (degree): 350
Angular Field of View (H, Min, Degree): 81
Angular Field of View (V, Min, Degree): 44
Minimum Illumination: 0.07 lux - color
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.9"
Image Sensor Type: PS CMOS
Lens Aperture: F/2.0
Min Focal Length: 3.6 millimetre
Sensor Size (metric): 8.8 mm (1/2.9")
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.5 inch
Width: 4.6 inch
Depth: 4.6 inch
Weight: 19.05 ounce
Included Items
Included Accessories: Alignment sticker, Cable gland, Screws
