Product Information

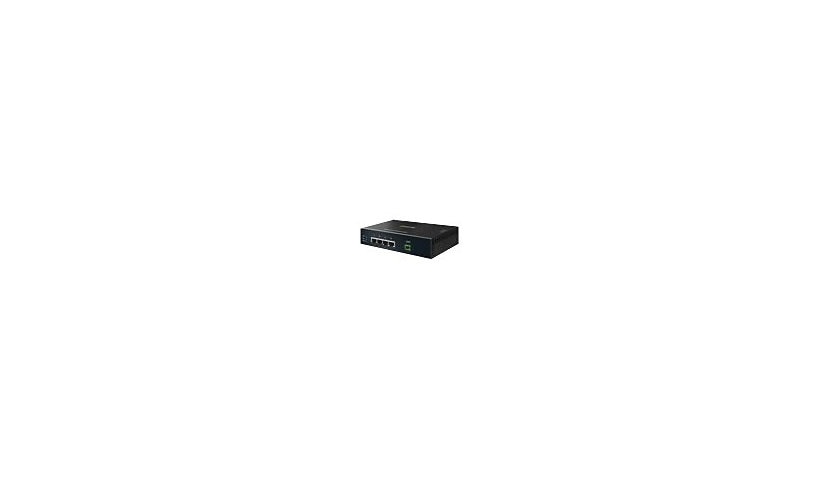

Perle's eX-4S1110-TB is a network extender, not a switch. It carries Ethernet over a VDSL2 line through a 2-pin terminal block for up to 1.9 miles and gives four 10/100/1000 RJ-45 ports at the far end, with VLAN support and link fault feedback.
Key Features
- Ethernet over VDSL2
- Up to 1.9 miles reach
- 4 x 10/100/1000 RJ-45 ports
- 2-pin terminal block line connection
- VLAN, link fault feedback
- External power adapter
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: eX-4S1110-TB
Product Type: Network extender
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Ethernet over VDSL2, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Max Transfer Distance: 1.9 miles
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode, Interlink Fault Feedback, Loopback, VLAN support
Connectivity
Ports: 4
Interface Provided: 1 x - VDSL2 - 2 pin terminal block, 4 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Status, Test mode
Dimensions and Weight
Height: 1 inch
Width: 4.7 inch
Depth: 4.5 inch
Weight: 16.58 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55022 Class A, EN55024, FCC Part 15 A, REACH, RoHS, UL 60950-1, WEEE
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
