Product Information

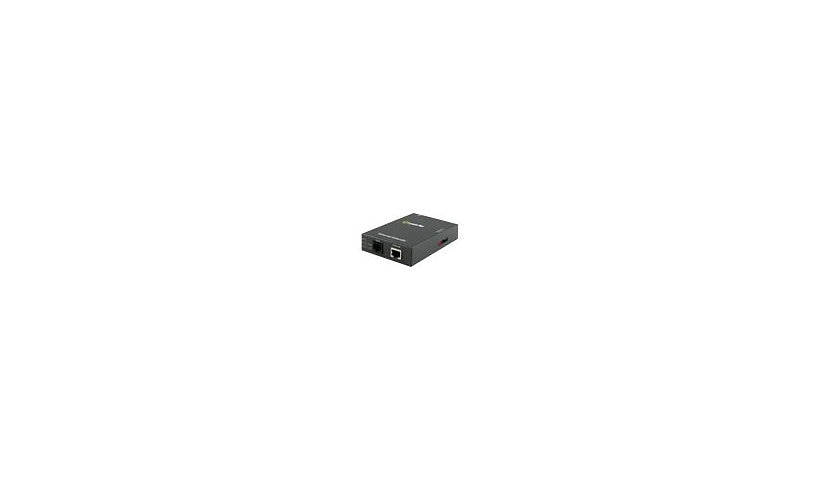

Perle's eX-KIT11-S110-RJ is a pair of Ethernet extenders, not a switch. The two units carry 10/100 Ethernet over a VDSL2 line with RJ-45 connections for up to 1.9 miles, with link pass-through and VLAN support.
Key Features
- Kit of 2 extenders
- 10/100 Ethernet over VDSL2
- Up to 1.9 miles reach
- RJ-45 VDSL2 and Ethernet ports
- Link pass-through, VLAN
- External power adapters
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: eX-KIT11-S110-RJ
Product Type: Network extender
Packaged Quantity: 2
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Ethernet over VDSL2, Fast Ethernet
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T
Max Transfer Distance: 1.9 miles
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode, Interlink Fault Feedback, Link Pass-Through, Loopback, VLAN support
Connectivity
Interface Provided: 1 x - VDSL2 - RJ-45, 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Status, Test mode
Dimensions and Weight
Height: 1 inch
Width: 4.7 inch
Depth: 3.1 inch
Weight: 10.58 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55022 Class A, EN55024, FCC Part 15 A, REACH, RoHS, UL 60950-1, WEEE
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
