Product Information

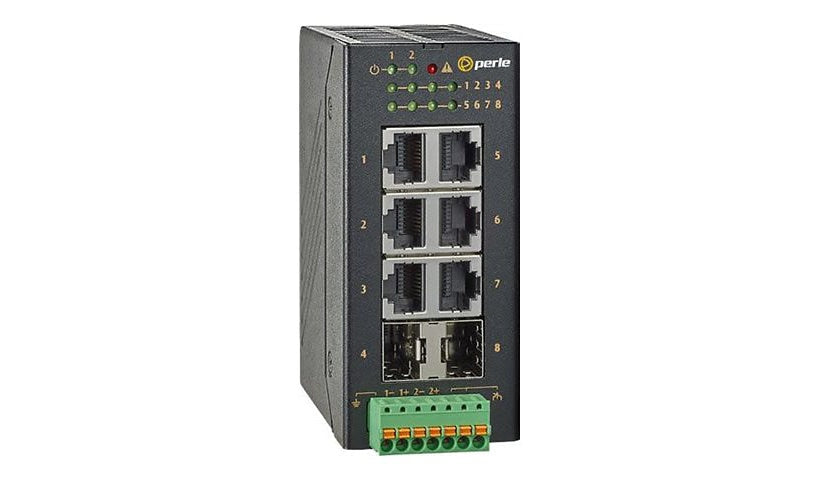

Perle's IDS-106GE-2SFP (07017370) is a compact industrial switch with six Gigabit RJ-45 ports and two 100/1000 SFP slots in a fanless metal case. It has redundant power inputs on a terminal block, an alarm output, EtherNet/IP and PROFINET support, and mounts on a DIN rail. It is TAA compliant.
Key Features
- 6 x Gigabit RJ-45 ports
- 2 x 100/1000 SFP slots
- Redundant power inputs, alarm output
- EtherNet/IP and PROFINET enabled
- Fanless metal housing
- DIN rail mount, TAA compliant
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: IDS-106GE-2SFP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding rate (1000Mbps): 1488100 packets per second, Forwarding rate (100Mbps): 148810 packets per second, Forwarding rate (10Mbps): 14880 packets per second
Capacity: Packet buffer size: 1.5 Mbit
MAC Address Table Size: 4K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Energy-Efficient Ethernet (EEE), EtherNet/IP enabled, Fanless, Flow control, Half/full duplex mode, Metal housing, Over-current protection, PROFINET, Quality of Service (QoS), Reverse polarity protection, Rugged, Store and forward
Connectivity
Ports: 8
Port Quantity: 6
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000Base-X SFP
Interface Provided: 1 x alarm output, 1 x power input 7 pin terminal block, 2 x 100/1000 Base-X SFP, 6 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: DC 12/24/48 volt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 2,160,910 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Fault, Link/activity, Power
Dimensions and Weight
Height: 3.9 inch
Width: 1.8 inch
Depth: 3 inch
Weight: 11.85 ounce
Included Items
Included Accessories: Mounting kit, Terminal block connector
Certifications and Listing
Compliant Standards: CISPR 32, EN 50121-4, EN 55032, EN 60175, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, FCC Part 15 A, ICES-003, IEC 60068-2-27, IEC 60068-2-6, IP40, MSA, NDAA, REACH, RoHS, UL 61010, VCCI Class A, WEEE
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - return to factory - 5 years
