Product Information

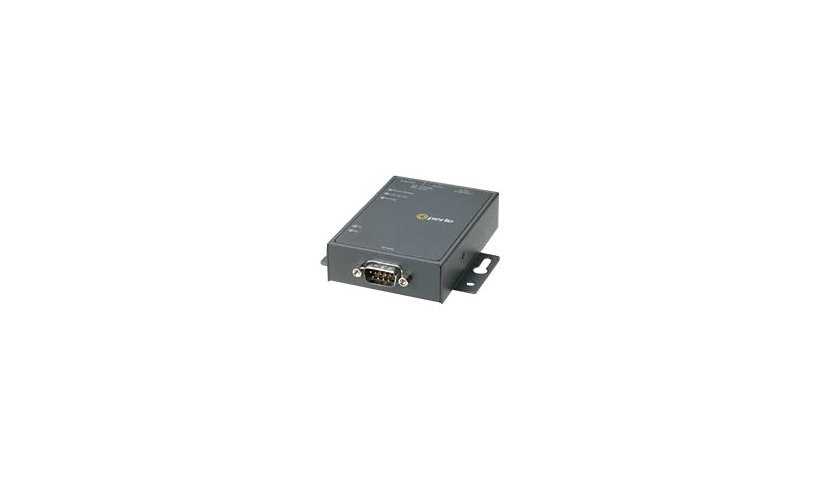

The Perle IOLAN DG1 TX (04031790) is an industrial 1 port device server for linking serial COM port, UDP or TCP socket applications to remote devices, rated from -40 to +74 C. It has one RS-232/422/485 DB-9 port with software selectable interface and one gigabit RJ-45 with auto MDI/MDI-X, plus 1.5 kV magnetic isolation and 15 kV ESD protection. A 600 MHz ARM with 512 MB RAM runs it, with IPv4, IPv6 and SNMP v3. It mounts on a wall or DIN rail and runs on DC power.
Key Features
- 1 RS-232/422/485 port
- Gigabit Ethernet
- -40 to +74 C rated
- 1.5 kV isolation
- Wall or DIN rail
- DC powered
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: DG1 TX
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, RARP, TCP/IP, UDP/IP
Remote Management: SNMP 3
Features: 1.5 KV Magnetic Isolation, 15 KV Electrostatic Discharge Protection, Auto-uplink (auto MDI/MDI-X), IPv4 support, IPv6 support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x RS-232/422/485 - DB-9
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 600 megahertz
RAM Installed: 512 megabyte
Flash Memory Installed: 4 megabyte
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 334,496 Hours
Physical Characteristics
Form Factor: Wall / DIN rail mountable
Status Indicators: Link/activity, Power, Ready, Receive, Transmit
Dimensions and Weight
Height: 0.9 inch
Width: 3.5 inch
Depth: 2.5 inch
Weight: 8.11 ounce
Certifications and Listing
Compliant Standards: CAN/CSA C22.2, CISPR 24:2010 Class A, CISPR 32 Class A, Directive 2011/65/EU, EN 55024:2010, EN 55032:2015 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1:2014, EN50581:2012, FCC CFR47 Part 15 B, ICES-003, IEC 62368-1, IP40, REACH, RoHS, UL 62368-1, WEEE
