Product Information

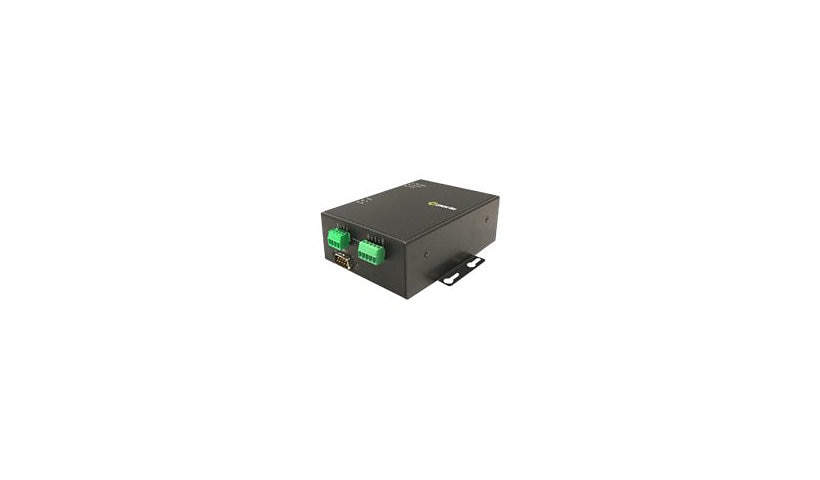

The Perle IOLAN DS1 A4D2 (04031050) is a 1 port serial device server with I/O for industrial use. It has one RS-232/422/485 DB-9 port, four analog inputs, two digital inputs/outputs and one 10/100 RJ-45 port. It supports IPv4 and IPv6, RAW TCP, syslog, MIB II and 15 kV ESD protection, and is managed by CLI, web, Modbus, SNMP v3, Telnet and TFTP. It mounts on a wall or DIN rail in a metal case and works with PC and Unix systems.
Key Features
- 1 RS-232/422/485 port
- 4 analog inputs
- 2 digital I/O
- 10/100 Ethernet
- Modbus, SNMP v3
- Wall or DIN rail, metal
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: DS1 A4D2
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, RARP, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, Modbus, SNMP 3, Telnet, TFTP
Data Transfer Rate: 230 Kbps
Features: 15 KV Electrostatic Discharge Protection, IPv4 support, IPv6 support, Management Information Base (MIB) II, Metal housing, RAW TCP, Syslog support
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x RS-232/422/485 - DB-9, 2 x digital input/output, 4 x analog input
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: MIPS
Processor Number: MPC852T
Processors Installed: 1
Clock Speed: 66 megahertz
RAM Installed: 16 megabyte
Flash Memory Installed: 4 megabyte
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Wall / DIN rail mountable
Status Indicators: Link/activity, Power, Ready, Receive, Transmit
Dimensions and Weight
Height: 1.8 inch
Width: 3.6 inch
Depth: 5 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: CAN/CSA C22.2, EN 55024 Class A, EN55022 Class A, FCC Part 15 A, ICES-003, IEC 60950-1, IP30, UL 60950
