Product Information

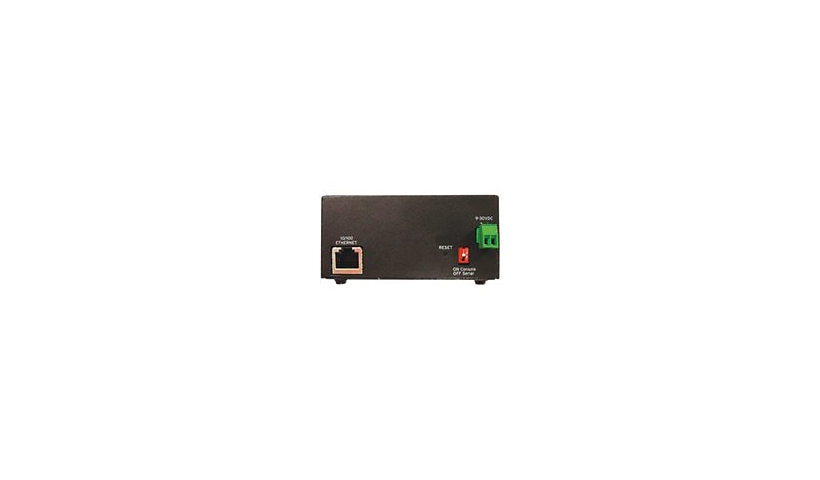

The Perle IOLAN DS1 D2R2 (04031010) is a 1 port serial device server with two relay outputs and two digital I/O. It has one DB-9 male serial port you can set to RS-232, RS-422 or RS-485, one 10/100 RJ-45 port, and screw terminals for the power and I/O wiring. It supports Modbus, RAW TCP, IPv6, syslog and MIB II, is managed by web, SNMP v3, Telnet and TFTP, and includes TruePort software for Windows, Linux, Solaris, AIX, HP-UX and SCO.
Key Features
- 1 RS-232/422/485 DB-9
- 2 digital I/O
- 2 relay outputs
- 10/100 Ethernet
- Modbus, SNMP v3
- TruePort software
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: DS1 D2R2
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Modbus, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, RARP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP 3, Telnet, TFTP
Data Transfer Rate: 230 Kbps
Operating System Required: HP-UX, IBM AIX, Linux, Microsoft Windows, Oracle Solaris, SCO OpenServer, UNIX
Features: ARP support, BOOTP support, DHCP support, Flow control, IPv4 support, IPv6 support, Management Information Base (MIB) II, RARP support, RAW TCP, Syslog support, Trivial File Transfer Protocol (TFTP) support
Software Type: TruePort
Connectivity
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x serial - DB-9
Memory and Processor
Processor Number: MPC852T
Processors Installed: 1
Clock Speed: 66 megahertz
RAM Installed: 16 megabyte
Flash Memory Installed: 4 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link OK, Link/activity, Port transmission speed, Power, Receive, Transmit
Dimensions and Weight
Height: 1.8 inch
Width: 3.6 inch
Depth: 5 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: CSA 22.2, EN 55022 Class A, EN 55024 Class A, FCC CFR47, FCC Part 15 A, ICES-003, IEC 60950-1, IP30, REACH, RoHS, UL 60950, WEEE
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
