Product Information

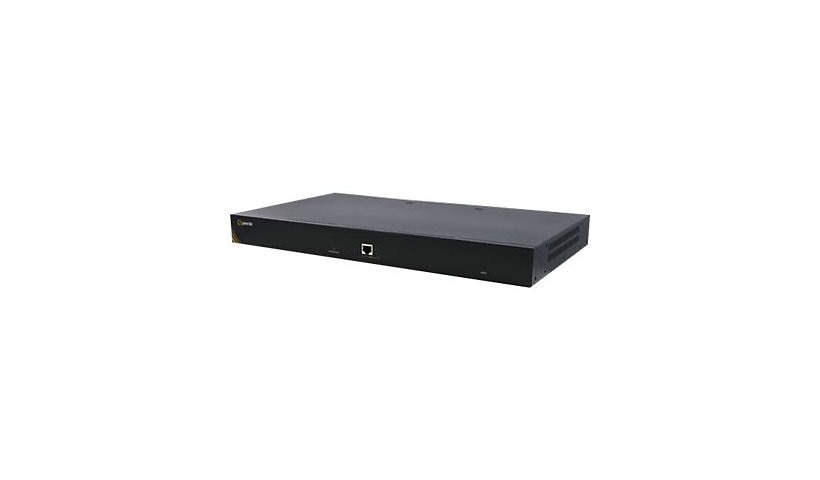

The Perle IOLAN SCG16 (04032654) is a 16 port 1U console server for secure remote management of any device with an RS-232 RJ-45 console port. TrueSerial technology gives faithful serial connections over Ethernet. It has sixteen RS-232 RJ-45 ports, one gigabit RJ-45 and a micro USB, with 1.5 kV isolation, 15 kV ESD and surge protection. A 500 MHz processor with about 1 GB RAM and 4 GB flash runs IPsec, L2TP, IPv6 and clustering, with FIPS 140-2, AES and TLS 1.2 plus AD, Kerberos, LDAP, RADIUS, TACACS+ and X.509.
Key Features
- 16 RS-232 RJ-45 ports
- TrueSerial technology
- Gigabit Ethernet
- FIPS 140-2, AES, TLS 1.2
- 1.5 kV isolation
- 1U rack mount
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCG16
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: ARP, BOOTP, CSLIP, DHCP, ICMP/IP, IPSec, L2TP, PAP, RARP, SFTP, SLIP, SMTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SFTP, SMTP, SNMP 3, SSH, SSH-2, Telnet, TFTP
Routing Protocol: CIDR, RIP-2
Authentication Method: Active Directory, CHAP, Kerberos, LDAP, MS-CHAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, AES, AES-CTR, AES-GCM, ARCFOUR, ARCTWO, Blowfish, CAST-128, DES, DSA, FIPS 140-2, MD5, RC2, RC4, RIPEMD160, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, Triple DES
Data Transfer Rate: 230 Kbps
Features: 1.5 KV Magnetic Isolation, 15KV ESD Protector, 1KV surge protection, 2KV Surge protection, ARP support, Authentication, Authorization and Accounting (AAA), BOOTP support, Clustering technology, DHCP support, DynDNS, Firmware upgradable, Flow control, Full duplex mode, Half duplex mode, Internet Control Message Protocol (ICMP), IP address filtering, IPv4 support, IPv6 support, L2TP support, LDAP support, microSD card slot, Point-to-Point Protocol (PPP), RARP support, SNTP support, Syslog support, Trivial File Transfer Protocol (TFTP) support, TrueSerial technology, Tunneling
Connectivity
Ports: 16
Interface Provided: 1 x 1000Base-T - RJ-45, 1 x micro-USB, 16 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Processors Installed: 1
Clock Speed: 500 megahertz
RAM Installed: 1000 megabyte
Flash Memory Installed: 4000 megabyte
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 94,455 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Ready
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 10.4 inch
Weight: 6.75 lbs
Certifications and Listing
Compliant Standards #2: AES, CAN/CSA-C22.2 No. 62368-1, CISPR32/EN55032, cUL, Directive 2011/65/EU, DSA, EN 50581:2012, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1, EN55024, FCC CFR47 Part 15 B Class A, FIPS 140-2, ICES-003, IP30, REACH, RoHS, RSA, SSL, UL, WEEE, X.509
Compliant Standards: X.509
Compliant Standards: AES, CAN/CSA-C22.2 No. 62368-1, CISPR32/EN55032, cUL, Directive 2011/65/EU, DSA, EN 50581:2012, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1, EN55024, FCC CFR47 Part 15 B Class A, FIPS 140-2, ICES-003, IP30, REACH, RoHS, RSA, SSL, UL, WEEE, X.509
