Product Information

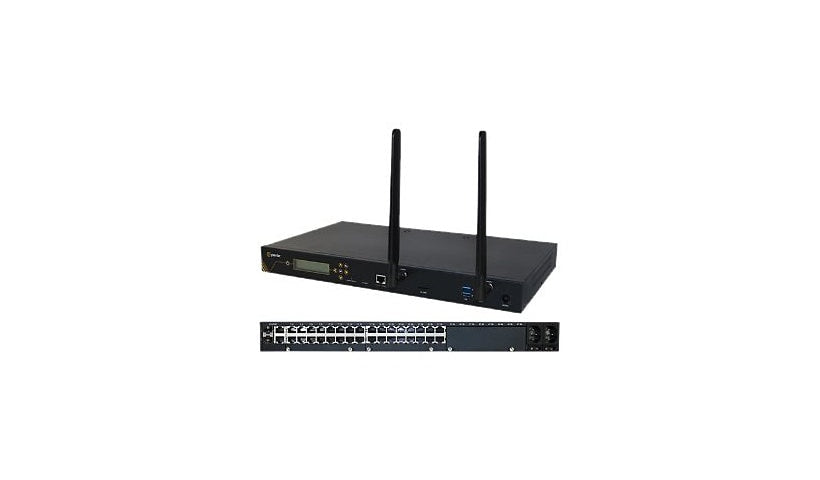

The Perle IOLAN SCG34 R-LAM (04032864) is a 1U console server for routers, switches, firewalls, servers, PBXs and storage with RS-232 or USB console ports, reachable over IP, V.92 dial-up or 4G LTE. It has thirty-two RS-232 RJ-45 ports, two USB 3.0, two gigabit RJ-45, two gigabit SFP, an RJ-11 modem port, a micro SIM slot and two detachable antennas (listed for Verizon and AT&T), plus keypad and status LCD. It runs IPsec, L2TP and clustering with FIPS 140-2, AES and TLS 1.2 and AD, Kerberos, LDAP, RADIUS and TACACS+. A rack kit is included.
Key Features
- 32 RS-232 RJ-45 ports
- 4G LTE and V.92 modem
- 2 x GbE plus 2 x SFP
- USB 3.0 console ports
- FIPS 140-2, IPsec
- 1U, rack kit included
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCG34 R-LAM
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Protocols & Specifications: ITU V.92
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, USB 3.0
Network Standard: ARP, BOOTP, CSLIP, DDNS, DHCP, ICMP/IP, IPSec, L2TP, LPR/LPD, PAP, RARP, SFTP, SLIP, SMTP, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, HTTPS, SFTP, SMTP, SNMP 3, SSH, SSH-2, Telnet, TFTP
Routing Protocol: CIDR, RIP-2
Authentication Method: Active Directory, CHAP, Kerberos, LDAP, MS-CHAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA, 384-bit SHA, AES, AES-CTR, AES-GCM, ARCFOUR, ARCTWO, Blowfish, CAST-128, DES, DSA, FIPS 140-2, MD5, RC2, RC4, RIPEMD160, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, Triple DES
Cellular Data Connectivity Technology: EDGE, GPRS, HSPA+, LTE, UMTS
Mobile Broadband Access: Yes
Antennas: 2
Antenna Form Factor: External detachable
Features: 1.5 KV Magnetic Isolation, 15 KV Electrostatic Discharge Protection, 15KV ESD Protector, 1KV surge protection, 2KV Surge protection, ARP support, Authentication, Authorization and Accounting (AAA), Auto-sensing per device, BOOTP support, Clustering technology, DHCP support, DynDNS, Firmware upgradable, Flow control, Full duplex mode, Half duplex mode, Internet Control Message Protocol (ICMP), IP address filtering, IP Security (IPSec) support, IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, L2TP support, LDAP support, Management Information Base (MIB), microSD card slot, Point-to-Point Protocol (PPP), RARP support, Secure Com Port Redirector, SNTP support, Syslog support, Trivial File Transfer Protocol (TFTP) support, TrueSerial technology, Tunneling, VPN support
Connectivity
Ports: 34
Interface Provided: 1 x management (RS-232) - RJ-45, 1 x micro-USB, 1 x modem - RJ-11, 2 x 1000Base-T - RJ-45, 2 x 1000Base-X - SFP (mini-GBIC), 2 x USB 3.0 - Type A, 32 x RS-232 - RJ-45
Analog Ports Quantity: 1
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: MIPS
Processor Number: 1750
Processors Installed: 1
Clock Speed: 500 megahertz
RAM Installed: 1 GB
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: Micro SIM card, microSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 72,925 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Receive, Transmit
Built-in Devices: Keypad, Status LCD
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 10.4 inch
Weight: 7.69 lbs
Included Items
Included Accessories: Rack mount kit
Certifications and Listing
Compliant Standards: X.509
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
