Product Information

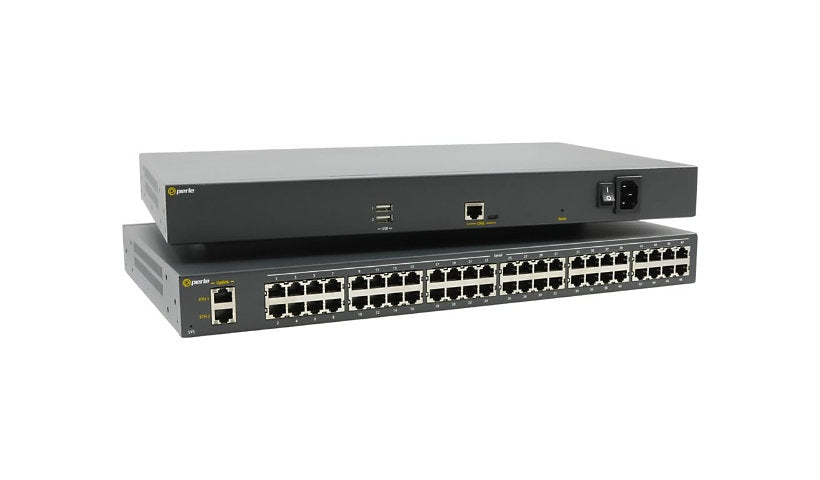

The Perle IOLAN SCR052 (04036044) is an SCR secure out-of-band console server with forty-eight RS-232 RJ-45 ports, two gigabit RJ-45, two USB-A and RJ-45 and USB-C consoles. An AMD Ryzen R1305G with 4 GB RAM and 64 GB flash runs firewall, NAT, DMZ, IPsec, OpenVPN and WireGuard, routing with BGP, OSPFv3 and VRRPv3, and two factor and 802.1X login with LDAP, RADIUS, RADSEC, TACACS+ and X.509. It draws about 12 W in 1U with a mounting kit, and runs from 0 to 50 C. TAA compliant.
Key Features
- 48 RS-232 RJ-45 ports
- 2 x gigabit Ethernet
- AMD Ryzen, 4 GB RAM
- BGP, OSPFv3, WireGuard
- Two factor authentication
- 1U, about 12 W, TAA
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCR052
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: ARP, BOOTP, CSLIP, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, IPSec, IPv4, IPv6, LPR/LPD, NTP, OpenVPN, RARP, SFTP, SLIP, TCP/IP, Telnet, TFTP, UDP, WireGuard
Remote Management: CLI, HTTP, HTTPS, ICMP, LDAP, SCP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Syslog, Telnet, WINS
Routing Protocol: BGP, BGP-4, GRE, MSTP, OSPFv3, RIP, RIPng, RSTP, Static IP routing, STP, VRRPv3
Authentication Method: CHAP, LDAP, PAP, RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Features: 2-factor authentication, 802.1x authentication, Authentication, Authorization and Accounting (AAA), DHCP snooping, DHCPv6 server, DMZ support, DNS client, DNS proxy, DNS relay, DNS spoofing, Dynamic DNS, E-mail alert, Firewall protection, IP address filtering, IPSec VPN server, Load balancing, MAC address filtering, NAT support, Point-to-Point Protocol (PPP), Port filtering, Port forwarding, SNTP support, SNTP v2 support, SNTP v3 support, SNTP v4 support, Trusted Platform Module 2.0 (TPM 2.0), VLAN support, VPN failover, Zero-touch provisioning (ZTP)
Connectivity
Ports: 50
Interface Provided: 1 x console - RJ-45, 1 x console - USB-C, 2 x 1000Base-T - RJ-45, 2 x USB - Type A, 48 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Frequency: 47 - 63 hertz
Power Consumption Operational: 12 watt
Memory and Processor
Processor Brand: AMD
Processor Type: Ryzen
Processor Number: R1305G
RAM Installed: 4 GB
Flash Memory Installed: 64 GB
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.4 inch
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards #2: CAN/CSA-C22.2 No. 62368-1-14, CISPR 11, CISPR 32, EN 55011, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC 47 CFR Part 15 Subpart B Class A, ICES-003, IP20, MIL-STD-810H, NDAA, NEBS, REACH, RoHS, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1x
Compliant Standards: CAN/CSA-C22.2 No. 62368-1-14, CISPR 11, CISPR 32, EN 55011, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC 47 CFR Part 15 Subpart B Class A, ICES-003, IP20, MIL-STD-810H, NDAA, NEBS, REACH, RoHS, WEEE
TAA Compliant: Yes
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
