Product Information

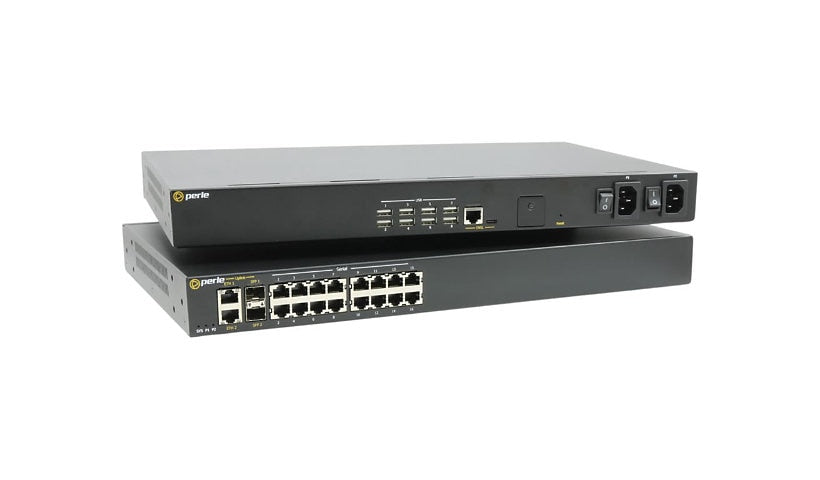

The Perle IOLAN SCR226 (04035724) is the wired version of the SCR226 secure out-of-band console server. It has sixteen RS-232 RJ-45 ports, two gigabit RJ-45 and two 10G SFP uplinks, eight USB-A ports and RJ-45 and USB-C consoles. An AMD Ryzen R1305G with 8 GB RAM and 256 GB flash runs firewall, NAT, IPsec, OpenVPN and WireGuard, routing with BGP, OSPFv3 and VRRPv3, and two factor and 802.1X login with LDAP, RADIUS, RADSEC and TACACS+. Dual AC supplies draw about 16 W in 1U, with a mounting kit. TAA compliant. The description mentions LTE antennas, which belong to the LTE model.
Key Features
- 16 RS-232 RJ-45 ports
- 2 x GbE, 2 x 10G SFP
- AMD Ryzen, 8 GB RAM
- BGP, OSPFv3, WireGuard
- Dual PSU, 1U
- TAA compliant
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCR226
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: ARP, BOOTP, CSLIP, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, IPSec, IPv4, IPv6, LPR/LPD, NTP, OpenVPN, RARP, SFTP, SLIP, TCP/IP, Telnet, TFTP, UDP, WireGuard
Remote Management: CLI, HTTP, HTTPS, ICMP, LDAP, SCP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Syslog, Telnet, WINS
Routing Protocol: BGP, BGP-4, GRE, MSTP, OSPFv3, RIP, RIPng, RSTP, Static IP routing, STP, VRRPv3
Authentication Method: CHAP, LDAP, PAP, RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Features: 2-factor authentication, 802.1x authentication, Authentication, Authorization and Accounting (AAA), DHCP snooping, DHCPv6 server, DMZ support, DNS client, DNS proxy, DNS relay, DNS spoofing, Dynamic DNS, E-mail alert, Firewall protection, IP address filtering, IPSec VPN server, Load balancing, MAC address filtering, NAT support, Point-to-Point Protocol (PPP), Port filtering, Port forwarding, SNTP support, SNTP v2 support, SNTP v3 support, SNTP v4 support, Trusted Platform Module 2.0 (TPM 2.0), VLAN support, VPN failover, Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Interface Provided: 1 x console - RJ-45, 1 x console - USB-C, 16 x RS-232 - RJ-45, 2 x 1000Base-T (uplink) - RJ-45, 2 x 10Gb Ethernet (uplink) - SFP, 8 x USB - Type A
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Consumption Operational: 16 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: AMD
Processor Type: Ryzen
Processor Number: R1305G
RAM Installed: 8 GB
Flash Memory Installed: 256 GB
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.4 inch
Weight: 10.47 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards #2: CAN/CSA-C22.2 No. 62368-1-14, CISPR 11, CISPR 32, EN 55011, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC 47 CFR Part 15 Subpart B Class A, ICES-003, IP20, MIL-STD-810H, NDAA, NEBS, REACH, RoHS, WEEE
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1x
Compliant Standards: CAN/CSA-C22.2 No. 62368-1-14, CISPR 11, CISPR 32, EN 55011, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC 47 CFR Part 15 Subpart B Class A, ICES-003, IP20, MIL-STD-810H, NDAA, NEBS, REACH, RoHS, WEEE
TAA Compliant: Yes
