Product Information

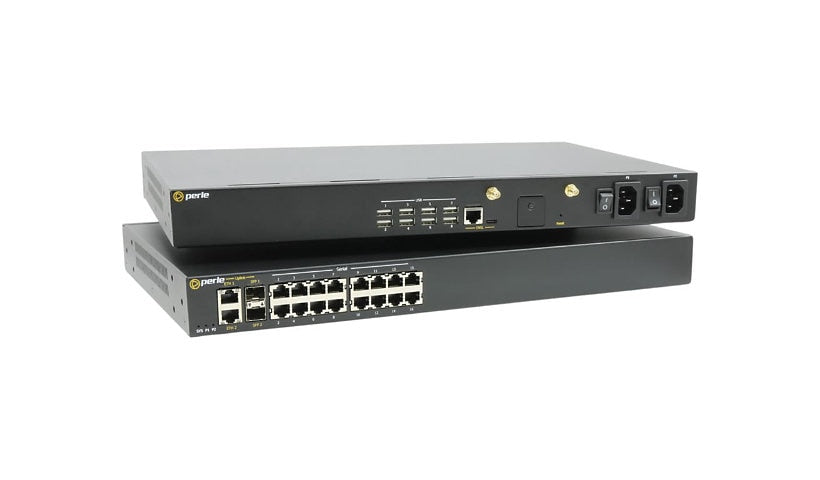

The Perle IOLAN SCR226 (04035754) is the LTE version of the SCR226 secure out-of-band console server, with HSPA+ and LTE Advanced Pro through two micro SIM slots and two detachable antennas. An AMD Ryzen R1305G with 8 GB RAM and 256 GB flash runs IPsec, OpenVPN and WireGuard VPN, VPN failover, firewall, load balancing, ZTP, TPM 2.0 and routing with RIP-2 and VRRPv3. Login supports LDAP, RADIUS, RADSEC and TACACS+, and it is managed by web, SSH, SMTP alerts and syslog. It is passively cooled with dual AC supplies drawing about 16 W in 1U. TAA compliant.
Key Features
- Console server with LTE
- Dual micro SIM, 2 antennas
- AMD Ryzen, 8 GB RAM
- IPsec, OpenVPN, WireGuard
- TPM 2.0, ZTP
- Dual PSU, 1U, TAA
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCR226
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: LTE, PPP, SNMP, SNMP v3
Network Standard: ARP, BOOTP, CSLIP, DDNS, DHCP, DNS, IPv4, IPv6, LPR/LPD, NTP, OpenVPN, RARP, SFTP, SLIP, TCP/IP, Telnet, TFTP, UDP, WireGuard
Remote Management: HTTP, HTTPS, ICMP, SMTP, SSH, Syslog, WINS
Routing Protocol: RIP-2, VRRPv3
Authentication Method: CHAP, LDAP, PAP, RADIUS, RADSEC, TACACS+
Encryption: MD5, SSL
Wireless LAN: LTE
Cellular Data Connectivity Technology: HSPA+, LTE, LTE Advanced Pro
Mobile Broadband Access: Yes
Cellular Band: UMTS/HSPA+ B1/B2/B3/B4/B5/B6/B8/B9/B29 / LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66
Antennas: 2
Antenna Form Factor: External detachable
Features: ALERT notification, DNS proxy, Dynamic DNS, Firewall protection, IPSec VPN server, Load balancing, Passive cooling, Port forwarding, SNTP support, Trusted Platform Module 2.0 (TPM 2.0), VPN failover, Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Expansion Slots: 2 (total) / 2 (free) x Micro SIM card
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Consumption Operational: 16 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: AMD
Processor Type: Ryzen
Processor Number: R1305G
RAM Installed: 8 GB
Flash Memory Installed: 256 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 157,990 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 13 inch
Depth: 10.4 inch
Weight: 10.47 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1x
