Product Information

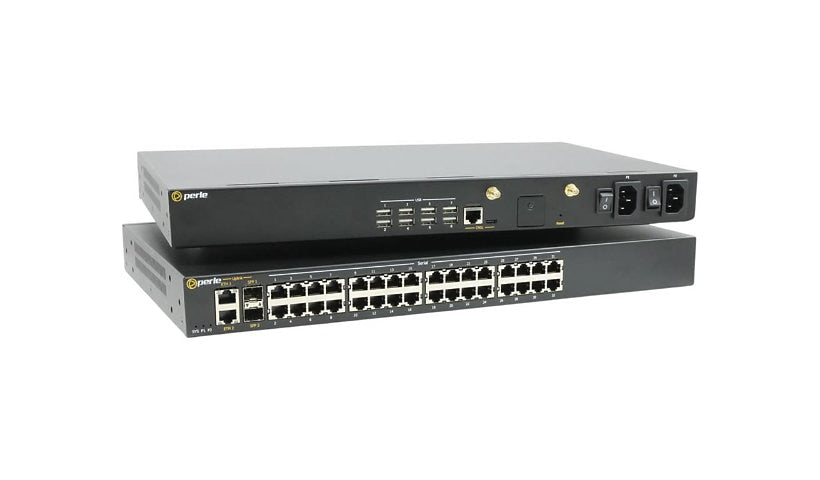

The Perle IOLAN SCRC242 (04035764) is an SCR secure out-of-band console server with thirty-two RS-232 RJ-45 ports, an eight port gigabit switch, two gigabit RJ-45 and two 10G SFP+ uplinks, eight USB-A and RJ-45 and USB-C consoles. It adds LTE Advanced Pro (up to 600 Mbps down and 150 Mbps up) through two mini SIM slots and two SMA antenna ports. An AMD Ryzen R1305G with 8 GB RAM and 256 GB flash runs firewall, IPsec, OpenVPN, WireGuard, BGP, OSPFv3 and two factor login. It fits 1U with a mounting kit. TAA compliant.
Key Features
- 32 RS-232 plus 8 port switch
- 2 x GbE, 2 x 10G SFP+
- LTE Advanced Pro
- AMD Ryzen, 8 GB RAM
- WireGuard, BGP, OSPFv3
- 1U, TAA compliant
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SCRC242
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: ARP, BOOTP, CSLIP, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, IPSec, IPv4, IPv6, LPR/LPD, NTP, OpenVPN, RARP, SFTP, SLIP, TCP/IP, Telnet, TFTP, UDP, WireGuard
Remote Management: CLI, HTTP, HTTPS, ICMP, LDAP, SCP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Syslog, Telnet, WINS
Routing Protocol: BGP, BGP-4, GRE, MSTP, OSPFv3, RIP, RIPng, RSTP, Static IP routing, STP, VRRPv3
Authentication Method: CHAP, LDAP, PAP, RADIUS, RADSEC, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: MD5, SSL, TLS 1.3
Cellular Data Connectivity Technology: LTE Advanced Pro
Mobile Broadband Access: Yes
Network Device: LTE downlink bandwidth: 600 Mbps, LTE uplink bandwidth: 150 Mbps
Features: 2-factor authentication, 802.1x authentication, Authentication, Authorization and Accounting (AAA), DHCP snooping, DHCPv6 server, DMZ support, DNS client, DNS proxy, DNS relay, DNS spoofing, Dynamic DNS, E-mail alert, Firewall protection, IP address filtering, IPSec VPN server, Load balancing, MAC address filtering, NAT support, Point-to-Point Protocol (PPP), Port filtering, Port forwarding, SNTP support, SNTP v2 support, SNTP v3 support, SNTP v4 support, Trusted Platform Module 2.0 (TPM 2.0), VLAN support, VPN failover, Zero-touch provisioning (ZTP)
Connectivity
Ports: 40
Interface Provided: 1 x console - RJ-45, 1 x console - USB-C, 2 x 1000Base-T (uplink) - RJ-45, 2 x 10Gb Ethernet (uplink) - SFP+, 2 x antenna - SMA, 32 x RS-232 - RJ-45, 8 x 10/100/1000Base-T - RJ-45, 8 x USB - Type A
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: AMD
Processor Type: Ryzen
Processor Number: R1305G
RAM Installed: 8 GB
Flash Memory Installed: 256 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 131,776 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 10.4 inch
Weight: 10.47 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1x
