Product Information

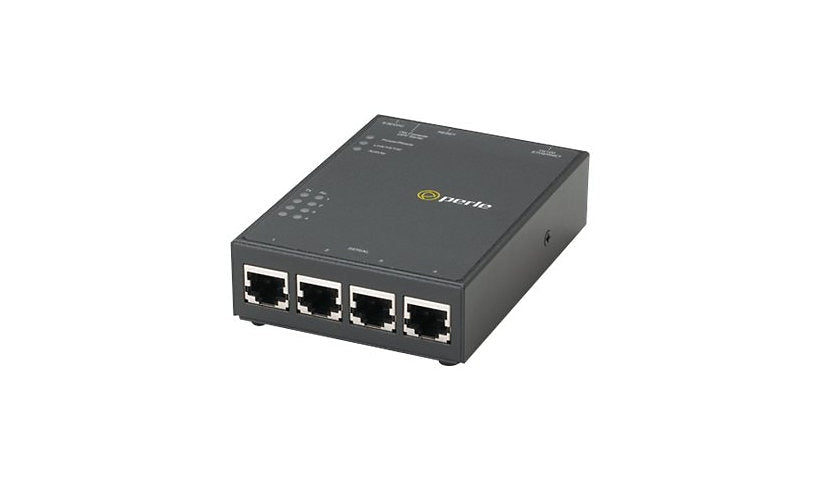

The Perle IOLAN SDG4 (04031854) is a 4 port device server for RS-232, RS-422 and RS-485 equipment with one gigabit Ethernet port. It has 1.5 kV magnetic isolation, 15 kV ESD protection, TruePort and TrueSerial technology, RAW TCP, flow control and IPv6, with SSH, RADIUS, TACACS+, LDAP and Kerberos. A 600 MHz ARM with 4 GB flash runs it at about 2 W in a wall mountable metal case. The spec lists 512 GB RAM, which looks like 512 MB, and the description mentions four gigabit ports while the spec shows one.
Key Features
- 4 serial ports
- RS-232, RS-422, RS-485
- 1 gigabit Ethernet port
- 1.5 kV isolation, 15 kV ESD
- TruePort, TrueSerial
- Metal case, about 2 W
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SDG4
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Authentication Method: Kerberos, LDAP, RADIUS, Secure Shell (SSH), TACACS+
Data Transfer Rate: 230 Kbps
Features: 1.5 KV Magnetic Isolation, 15 KV Electrostatic Discharge Protection, Flow control, IPv6 support, Metal housing, RAW TCP, TruePort, TrueSerial technology, Wall mountable
Connectivity
Ports: 4
Interface Provided: 1 x 1000Base-T - RJ-45, 4 x serial
Power
Device Type: External power adapter
Power Consumption Operational: 2 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 600 megahertz
RAM Installed: 512 GB
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 187,919 Hours
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Receive, Transmit
Dimensions and Weight
Height: 1.1 inch
Width: 3.2 inch
Depth: 4.4 inch
Weight: 12.34 ounce
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, CISPR 24:2010, CISPR 32:2015 Class A, Directive 2011/65/EU, EN 55024:2010, EN 55032:2015 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2:2009, EN 61000-4-3:2006, EN 61000-4-4:2004, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8, EN 62368-1:2014, FCC Class B certified, ICES-003:2016, IEC 62368-1, IP40, REACH, RoHS, UL 62368-1, WEEE
