Product Information

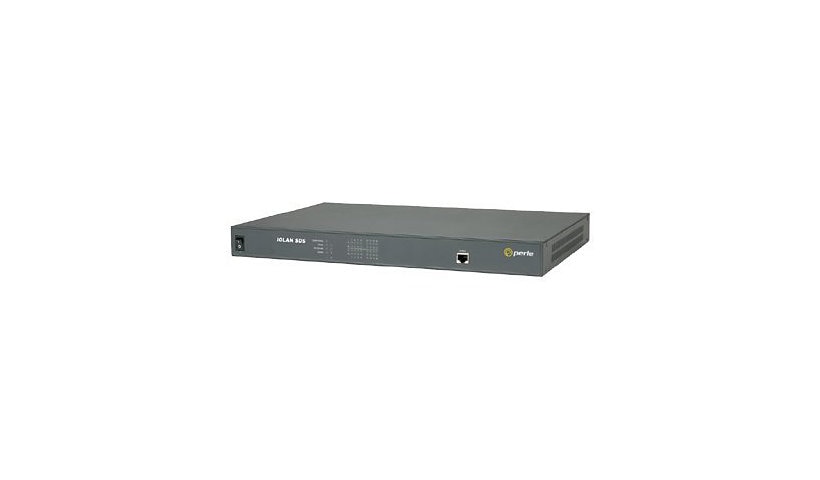

The Perle IOLAN SDS16 (04030324) is a 16 port 1U device server for RS-232, RS-422 and RS-485 equipment, giving secure IP access to console ports on PBXs, servers, routers, storage and security appliances. It has one gigabit RJ-45 port, supports IPv6, DHCP, BOOTP and IP filtering, and protects data with SSH v2, SSL, AES and 3DES, with RADIUS, TACACS+, LDAP, Kerberos, SecurID and X.509. It has an internal power supply and is managed by web, Telnet and SNMP.
Key Features
- 16 serial ports
- RS-232, RS-422, RS-485
- Gigabit Ethernet
- SSH v2, SSL, AES
- RADIUS, TACACS+, SecurID
- 1U, internal PSU
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SDS16
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Communication Mode: Full-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Authentication Method: CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), SecurID, TACACS+, X.509 certificates
Encryption: 128-bit WEP, 256-bit WPA, AES, ARCFOUR, ARCTWO, Blowfish, CAST, DES, MD5, SSL, Triple DES
Features: BOOTP support, DHCP support, IP address filtering, IPv6 support
Connectivity
Ports: 16
Interface Provided: 1 x 1000Base-T - RJ-45, 16 x serial
Power
Device Type: Internal power supply
Memory and Processor
Clock Speed: 400 megahertz
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 10.4 inch
Weight: 6.83 lbs
Certifications and Listing
Compliant Standards: CSA C22.2, EN55022 Class A, EN55024, FCC Class A certified, FCC Part 15, UL 60950
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
