Product Information

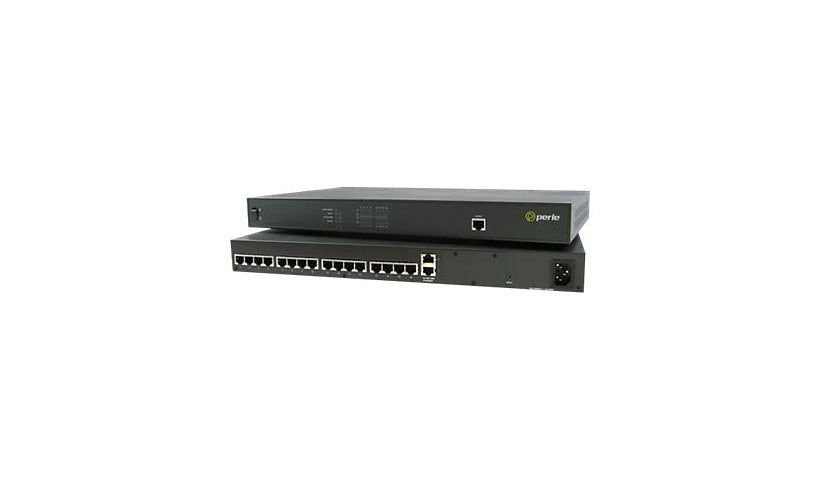

The Perle IOLAN SDS16C (04031614) is a 16 port 1U device server for RS-232, RS-422 and RS-485 equipment, built for serial communication, data capture and monitoring. Dual gigabit Ethernet with Redundant Path keeps serial access available. A 400 MHz processor with 64 MB RAM and 16 MB flash supports IPsec VPN, NAT-T, L2TP, IPv6, dynamic DNS and 15 kV ESD protection. Security covers SSH v2, SSL/TLS and AES up to 256-bit, with LDAP, RADIUS, TACACS+ and X.509. It is managed by web, SNMP v3, SSH and Telnet and draws about 15 W.
Key Features
- 16 serial ports
- RS-232, RS-422, RS-485
- Dual GbE, Redundant Path
- IPsec VPN, AES-256
- 15 kV ESD protection
- 1U, about 15 W
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SDS16C
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-422, RS-485
Network Standard: BOOTP, DHCP, DNS, IPSec, L2TP, PAP, SLIP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP 3, SSH, SSH-2, Telnet
Authentication Method: LDAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: 128-bit AES, 192-bit AES, 256-bit AES, ARCFOUR, ARCTWO, Blowfish, CAST-128, DES, DSA, DSS, MD5, RC2, RC4, RIPEMD160, RSA, SHA-1, SSL 2.0, SSL 3.0, TLS 1.0, Triple DES
Features: 15 KV Electrostatic Discharge Protection, DHCP support, Dynamic DNS server, IP address filtering, IPSec NAT-Traversal (NAT-T), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, LDAP support, SNTP support, Syslog support
Connectivity
Ports: 16
Interface Provided: 16 x serial, 2 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 15 watt
Memory and Processor
Processor Brand: MIPS
Processor Number: MPC8349E
Clock Speed: 400 megahertz
RAM Installed: 64 megabyte
Flash Memory Installed: 16 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 106,970 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Receive, Transmit
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 10.4 inch
Weight: 6.83 lbs
Certifications and Listing
Compliant Standards: CSA C22.2 No. 60950-1-03, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class A, EN55024, FCC CFR47 Part 15 B, FCC Part 15 B Class A, ICES-003, IEC 60529 IP30, IEC 60950-1, RoHS, UL 60950-1, WEEE
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
