Product Information

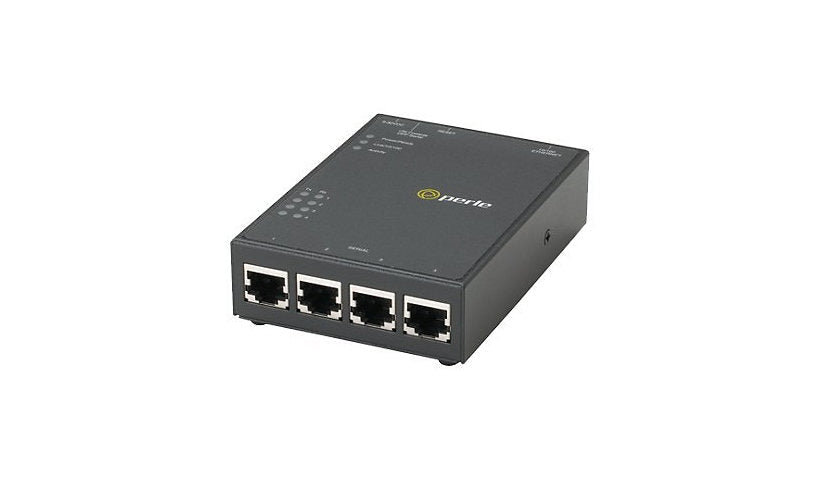

The Perle IOLAN SDS4 (04030304) is a compact 4 port secure device server for RS-232, RS-422 and RS-485 equipment, suited to remote console management, data capture and monitoring. It has one 10/100 RJ-45 port, supports IPv6, RIP-2, dynamic DNS, IP filtering and syslog, and full or half duplex with flow control. Security covers SSH v2, SSL/TLS, AES, 3DES and Blowfish, with RADIUS, TACACS+, LDAP, Kerberos and X.509 login. It is managed by web (HTTP and HTTPS), Telnet and SNMP.
Key Features
- 4 serial ports
- RS-232, RS-422, RS-485
- 10/100 Ethernet
- SSH v2, SSL/TLS, AES
- RADIUS, TACACS+, LDAP
- IPv6 support
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SDS4
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, SLIP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP, Telnet
Routing Protocol: RIP-2
Authentication Method: CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, X.509 certificates
Encryption: AES, ARCFOUR, Blowfish, CAST, MD5, RC2, RC4, RSA, SHA-1, SSL, TLS, Triple DES
Data Transfer Rate: 3.6 MBps
Features: 128-bit encryption, 256-bit encryption, ARP support, BOOTP support, DHCP support, Dynamic DNS server, Flow control, IP address filtering, IPv6 support, RARP support, Syslog support
Connectivity
Ports: 4
Interface Provided: 1 x 100Base-TX - RJ-45, 4 x serial
Power
Device Type: External power adapter
Memory and Processor
Processor Number: MPC852T
Clock Speed: 66 megahertz
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link OK, Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.1 inch
Width: 4.4 inch
Depth: 3.2 inch
Weight: 1.54 lbs
Certifications and Listing
Compliant Standards: CSA, EN 60950, EN55022 Class A, FCC Part 15, UL 1950
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
