Product Information

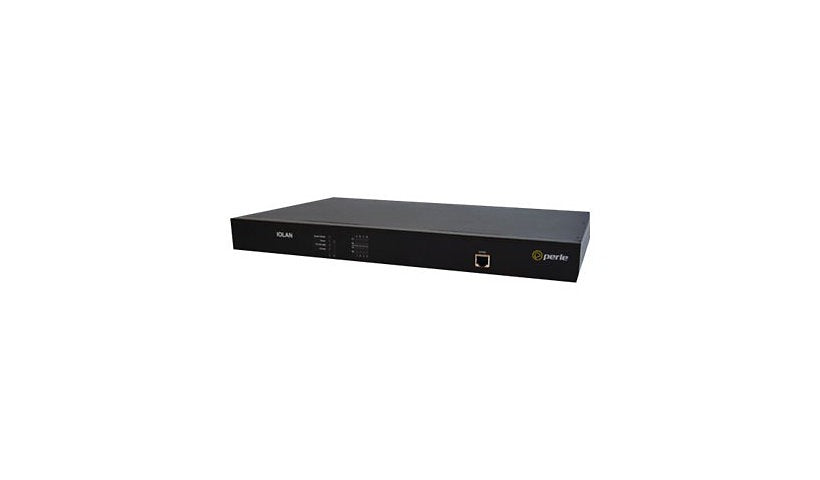

The Perle IOLAN SDS8C LDC (04032420) is an 8 port 1U utility console server with RJ-45 serial ports selectable for RS-232, RS-422 or RS-485, gigabit Ethernet and dual 24/48 V DC power, with features for NERC-CIP compliance. A 400 MHz processor with 64 MB RAM and 16 MB flash runs IPsec, L2TP, IPv6, RIP-2 and dynamic DNS. Security includes SSH v2, SSL/TLS, AES up to 256-bit and 3DES, with RADIUS, TACACS+, LDAP, Kerberos, SecurID and X.509 login. It is managed by web, SNMP v3, SSH and Telnet, and has one PCI expansion slot.
Key Features
- 8 serial ports, RJ-45
- RS-232/422/485 selectable
- Dual 24/48 V DC power
- NERC-CIP features
- IPsec, SSH, AES-256
- 1U rack mount
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle IOLAN
Model: SDS8C LDC
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, ICMP/IP, IPSec, L2TP, LPR/LPD, RARP, RAW, SLIP, SMTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol: RIP-2
Authentication Method: CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), SecurID, TACACS+, X.509 certificates
Encryption: 128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 256-bit WPA, ARCFOUR, ARCTWO, Blowfish, CAST-128, DES, DSA, DSS, MD5, MODBUS, RC2, RC4, RIPEMD160, RSA, SHA-1, SSL 2.0, SSL 3.0, TLS 1.0, Triple DES
Data Transfer Rate: 230 Kbps
Features: BOOTP support, DHCP support, Dynamic DNS server, Hardware flow control, IP address filtering, IPv6 support, SNTP support, Software flow control, Syslog support, Trivial File Transfer Protocol (TFTP) support
Connectivity
Ports: 8
Expansion Slots: 1 (total) / 1 (free) x PCI
Power
Device Type: Internal power supply
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Processor Brand: MIPS
Processor Number: MPC8349E
Clock Speed: 400 megahertz
RAM Installed: 64 megabyte
Flash Memory Installed: 16 megabyte
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.1 inch
Depth: 10.4 inch
Weight: 7.05 lbs
Certifications and Listing
Compliant Standards: CB, CSA C22.2, CSA C22.2 No. 60950-1-03, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, FCC Part 15, ICES-003, IEC 60529 IP30, IEC 60950-1, RoHS, UL 60950-1, WEEE
