Product Information

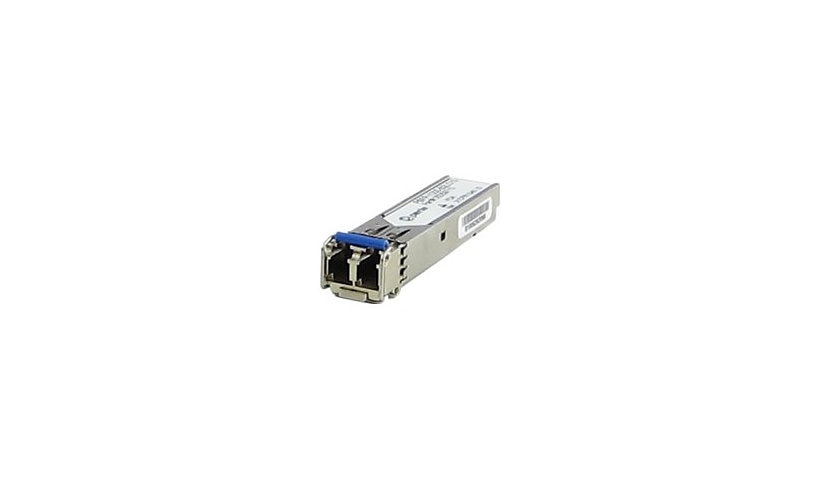

The Perle PSFP-10GD-M2LC008 (05059660) is a 10GBase-SR SFP+ optic for 10 Gigabit Ethernet over multimode fiber at 850 nm, with a duplex LC connector and reach up to 984 ft (about 300 m). It supports digital optical monitoring. Listed devices include Perle C-10G, CM-10G and S-10G media converters.
Key Features
- 10GBase-SR short reach
- 850 nm, LC multimode
- Reach up to 984 ft
- Digital optical monitoring
- For Perle 10G converters
- SFP+ form factor
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: PSFP-10GD-M2LC008
Product Type: SFP+ transceiver module
Compatibility Specs: Perle C-10G-STS, C-10G-XTS, C-10G-XTSH, CM-10G-STS, CM-10G-XTS, CM-10G-XTSH, S-10G-STS, S-10G-XTS, S-10G-XTSH
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Cable Type: Ethernet 10GBase-SR
Data Transfer Rate: 10 GBps
Max Transfer Distance: 984 ft
Optical Wave Length: 850 nm
Features: Digital Optical Monitoring (DOM) support
Connectivity
Interface Provided: 1 x Ethernet 10GBase-SR - LC multi-mode x 2
Compatible Slots Required: 1 x SFP+
Left Connector SD Type: LC multi-mode
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Module
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
