Product Information

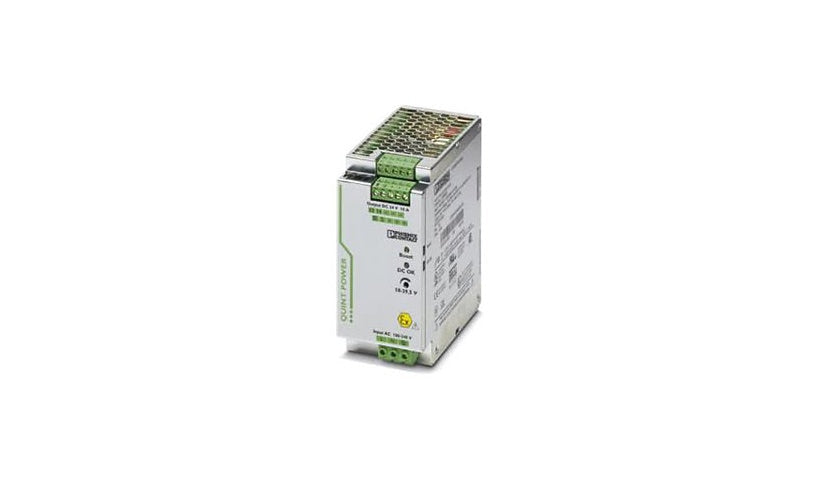

The Perle QUINT-PS/1AC/24DC/10/CO (23209118) is a rugged 240W, 24V DC DIN rail supply for AC 85 to 264V or DC 90 to 410V, 92.5% efficient, with selective fuse breaking, parallel capability, LED, high isolation and a 900,000 hour MTBF, rated -40 to 70 degrees C. It is an industrial supply, not a laptop charger. Backed by a 1 year limited warranty.
Key Features
- 240W, 24V DC
- DIN rail mount
- -40 to 70 C
- 92.5% efficiency
- Not a laptop charger
- 1 year limited warranty
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: QUINT-PS/1AC/24DC/10/CO
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Features: 0.2 - 2.5 mm² wire range, 16 - 12 AWG, M3 thread, Rugged, Screw connection
Power
Power Capacity: 303 volt ampere per kilogram
Input Wiring: 1-phase
Required Voltage: AC 85-264/ DC 90-410 volt
Frequency: 45 - 65 hertz
Power Device Features: 2 kV AC input/output isolation (routine test), 3.5 kV AC input/PE isolation (type test), 4 kV AC input/output isolation (type test), 4 kV ESD protection (contact), 500V DC output/PE isolation, LED indicator, NS 35 DIN rail, Parallel Capability, Selective Fuse Breaking (SFB)
Power Provided: 240 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Max Input Current: 10 ampere
Efficiency: 92.5% (230 VAC)
Surge Response Time: 12 millisecond
Provided Voltage: DC 24 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: Up to 100% (non-condensing)
MTBF: 900,000 Hours
Protection Type: Fuse
Dimensions and Weight
Height: 5.1 inch
Width: 2.4 inch
Depth: 4.9 inch
Weight: 2.43 lbs
Certifications and Listing
Compliant Standards: ANSI/ISA.12.12.01 Class I Division 1 Groups ABCD, ATEX Directive, China RoHS, CSA, cUL, DIN VDE 0100-410, DNV-GL, EMC 2014/30/EU, EN 50121-4, EN 50178, EN 55011, EN 60204-1, EN 60715, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-2, EN 61000-6-3, EN55022, IEC 60068-2-27, IEC 60068-2-6, IEC 60950-1, IEC 62477-1, IECEx, IP20, LVD 2006/95/EC, NDAA Section 889, REACH, REACH SvHC, RoHS, SEMI F47-0706, UL 508, UL 60950-1, VDE 0160, VDE 0805, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - return to factory - 1 year
