Product Information

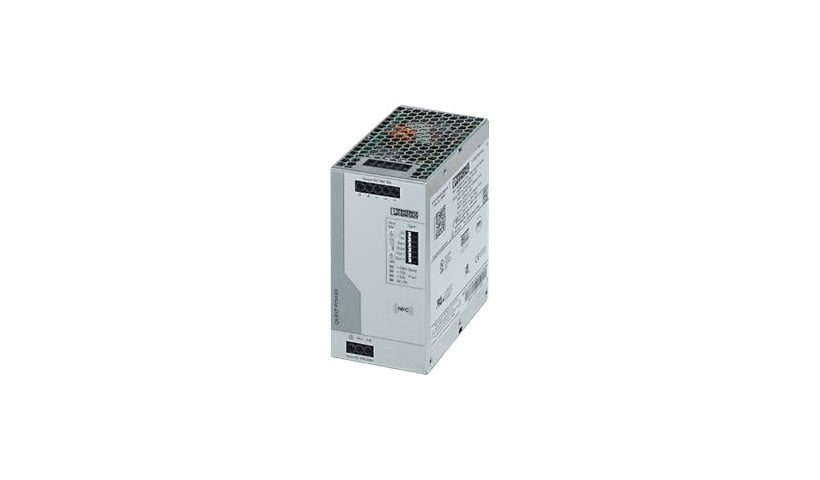

The Perle QUINT4-PS/1AC/48DC/10 (29046118) is a 480W, 48V industrial DIN rail power supply for AC 85 to 264V or DC 90 to 350V, with 94 to 95% efficiency, power boost, selective fuse breaking, short circuit protection and NFC programming. It is an industrial supply, not a laptop charger.
Key Features
- 480W, 48V
- DIN rail mount
- AC or DC input
- 94 to 95% efficiency
- NFC programmable
- Not a laptop charger
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: QUINT4-PS/1AC/48DC/10
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Features: For 35 mm DIN rail, For cable cross-section 0.2 - 6 mm², Programmable via NFC
Power
Input Wiring: 1-phase
Input Voltage Range: AC 85 - 264 / DC 90 - 350 V
Required Voltage: AC 100-240/ DC 110-250 volt
Frequency: 45 - 65 hertz
Power Device Features: Power boost, Selective Fuse Breaking (SFB), Short-circuit protection
Power Provided: 480 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Efficiency: 94% (120VAC) / 95% (230VAC)
Provided Voltage: 48 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Protection Type: Fuse
Dimensions and Weight
Height: 5.1 inch
Width: 2.8 inch
Depth: 4.9 inch
Weight: 2.87 lbs
Certifications and Listing
Compliant Standards: CB, China RoHS, cUL, Directive 2014/30/EU, EN 50178, EN 60204-1, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-3, EN 61558-2-16, IEC 60068-2-27, IEC 60068-2-6, IEC 60950-1, IEC 61000-6-2:2005, IP20, LVD 2006/95/EC, REACH, UL 1310, UL 508, UL 60950-1, VDE 0160, VDE 0805
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
