Product Information

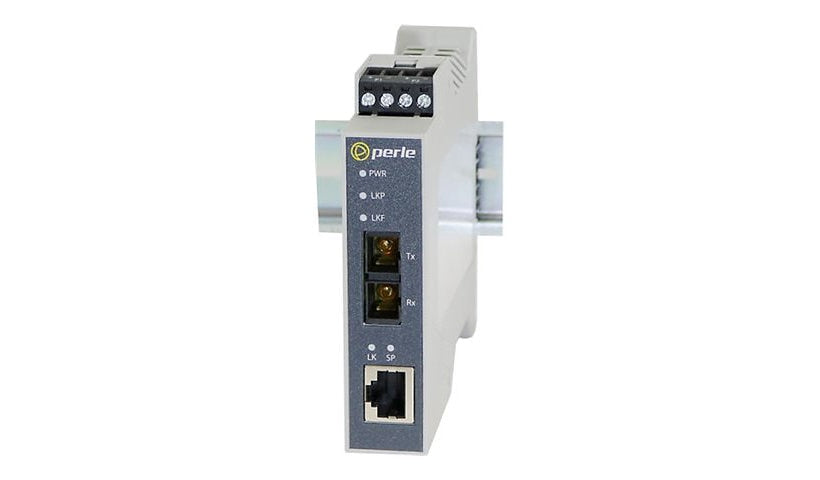

The Perle SR-1110-SC10-XT converts 10/100/1000Base-T copper to 1000Base-LX/LH singlemode fiber with SC connectors at 1310 nm, reaching up to 10 km. Its compact DIN rail design suits industrial sites, and it runs from -40 to 75°C with 5 to 90% non-condensing humidity. Smart Link Pass-Through, Far End Fault and auto-negotiation add network visibility, and it is TAA compliant.
Specifications:
Brand: Perle
Manufacturer part number: 05091920
Cable type: Fiber media converter
Data rate: 1 GBps
Features: 1.5 KV Magnetic Isolation, 10 KB Jumbo Frame, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Far End Fault (FEF), Full duplex mode, Half duplex mode, Loopback, MAC address filtering, Smart Link Pass-Through
Height: 4.5 inch
Width: 0.9 inch
Weight: 4.23 ounce
Color: Gray
Operating temperature: -40°F to 167°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: 21 CFR 1040.10, 21 CFR 1040.11, CAN/CSA-C22.2 No. 62368-1, CISPR 11, CISPR 32, CISPR 35, EN 55011, EN 55032, EN 55035, EN 60825-1, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4, FCC CFR47 Part 15 A, ICES-003, IEC 60825, IEC/EN 61000-6-2, IEC/EN/UL 62368-1, IP20, Laser Class 1, MIL-HDBK-217FN2, REACH, RoHS, WEEE
Warranty: Limited Lifetime
Ports: RJ-45 and SC singlemode
Wavelength: 1310 nm
Reach: up to 10 km
