Product Information

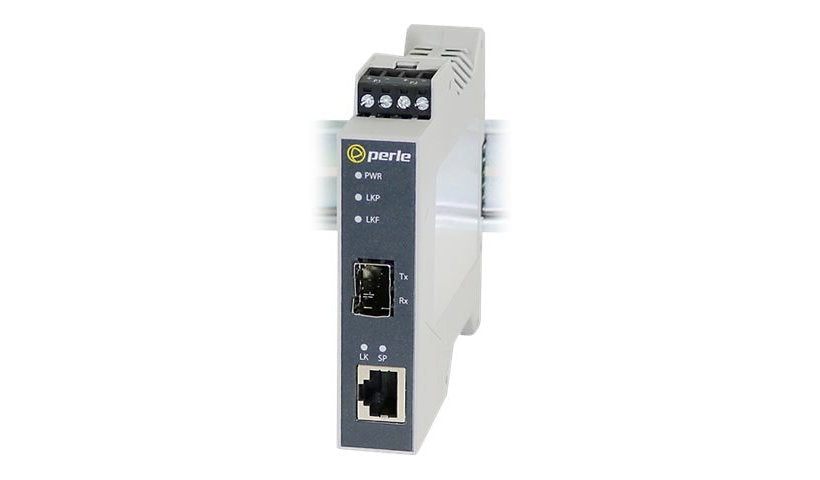

The Perle SR-1110-SFP extends network links over fiber and supports Ethernet, Fast Ethernet and Gigabit Ethernet through its RJ-45 port and SFP slot. It runs from -10 to 60°C at 5 to 90% non-condensing humidity with an MTBF of 571,991 hours, draws just 2.16 W, and adds VLAN support and MAC address filtering. It meets CISPR 32 Class A and RoHS.
Specifications:
Brand: Perle
Manufacturer part number: 05091960
Cable type: Fiber media converter
Data rate: 1 GBps
Features: 1.5 KV Magnetic Isolation, 10 KB Jumbo Frame, 1000KB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Far End Fault (FEF), Fiber Fault Alert, Full duplex mode, Half duplex mode, Loopback, MAC address filtering, Smart Link Pass-Through, VLAN support
Height: 4.5 inch
Width: 0.9 inch
Weight: 4.23 ounce
Color: Gray
Operating temperature: 14°F to 140°F
Quantity in package: 1
Standards and compliance: 21 CFR 1040.10, 21 CFR 1040.11, CISPR 24:2010, CISPR 32 Class A, CISPR 32:2015, EN 55024:2010, EN 55032 Class A, EN 55032:2015 Class A, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 62368-1:2014, EN55024, FCC CFR47 Part 15 A, ICES-003, IEC 60825-1:2007, IEC 61000-6-2, REACH, RoHS, WEEE, IEEE 802.3xy
Warranty: Limited Lifetime
MTBF: 571,991 hours
Power: 2.16 W
