Product Information

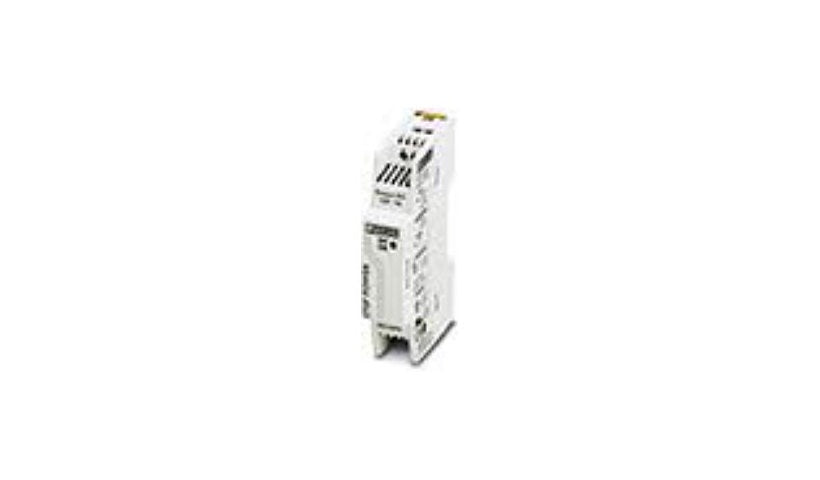

The Perle STEP-PS/1AC/12DC/1 (28685388) is a low profile 12 W DIN rail power supply with 12 V DC output held within plus or minus 1 percent. It takes single phase 85 to 264 V AC at 45 to 65 Hz or 95 to 250 V DC, with 83 percent efficiency at 230 V AC. It has short circuit, overload, overvoltage and overheat protection, a fuse, LED indicators, parallel capability and 4 kV input to output isolation. It fits 35 mm DIN rails, works from -25 to 70 °C at 0 to 95 percent humidity, has an MTBF of 1,478,000 hours and is TAA compliant.
Key Features
- 12 W, 12 V DC output
- 85 to 264 V AC input
- Low profile DIN rail
- Overload, short protection
- -25 to 70 °C operation
- TAA compliant
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: STEP-PS/1AC/12DC/1
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Features: For 35 mm DIN rail, Low profile
Power
Input Wiring: 1-phase
Power Factor (PF): 0.38
Required Voltage: AC 85-264/ DC 95-250 volt
Frequency: 45 - 65 hertz
Power Device Features: 2 kV AC input/PE isolation (routine test), 3.5 kV AC input/PE isolation (type test), 3.75 kV AC input/output isolation (routine test), 4 kV AC input/output isolation (type test), 500V DC output/PE isolation, DIN rail mount, LED indicators, NS 35 DIN rail, Overheat protection, Overload protection, Overvoltage protection, Parallel Capability, Short-circuit protection
Power Provided: 12 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Max Input Current: 15 ampere
Voltage Provided Margin: ± 1%
Efficiency: 83% (230 VAC)
Surge Response Time: 0.5 second (time unit)
Provided Voltage: DC 12 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
MTBF: 1,478,000 Hours
Protection Type: Fuse
Dimensions and Weight
Height: 3.5 inch
Width: 0.7 inch
Depth: 2.4 inch
Weight: 2.47 ounce
Certifications and Listing
Compliant Standards: ANSI, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCDT4, China RoHS, Class II, cUL 508, DIN VDE 0100-410, EAC, EMC 2014/30/EU, EN 50121-4, EN 50178, EN 60204-1, EN 60715, EN 61000-3-2, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-2, EN 61000-6-3, EN 61558-2-16, IEC 60068-2-27, IEC 60068-2-6, IEC 60950-1, IECEE CB, IP20, NDAA, NEC Class 2, REACH SvHC, RoHS, UL 1310, UL 508, UL 60950-1, VDE 0160, VDE 0805, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
