Product Information

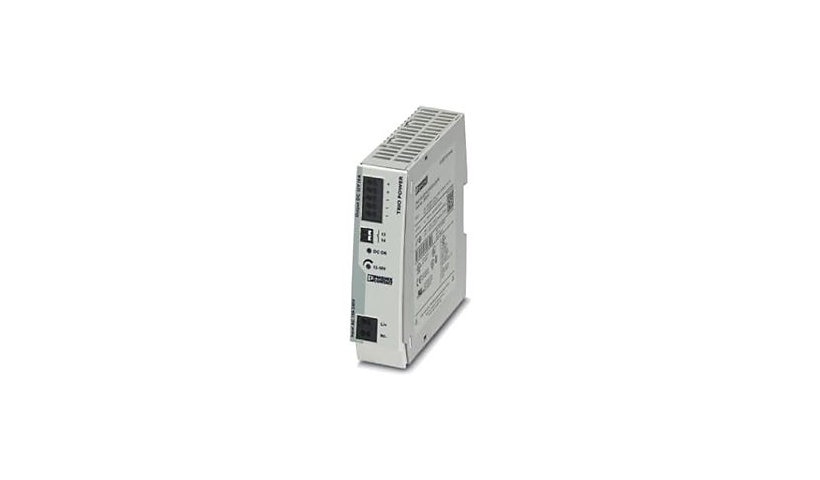

The Perle TRIO-PS-2G/1AC/12DC/10 (29031588) is a 120W, 12V DIN rail supply for AC 85 to 264V or DC 99 to 275V with 89% efficiency, power boost, adjustable output, 3 kV isolation, LEDs and a 1,700,000 hour MTBF, rated -25 to 70 degrees C. It is an industrial supply, not a laptop charger. Backed by a 1 year limited warranty.
Key Features
- 120W, 12V
- DIN rail mount
- AC or DC input
- -25 to 70 C
- Not a laptop charger
- 1 year limited warranty
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: TRIO-PS-2G/1AC/12DC/10
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Gray
Power
Input Wiring: 1-phase
Input Voltage Range: AC 85 - 264 / DC 99 - 275 V
Required Voltage: AC 100-240/ DC 110-250 volt
Frequency: 50 - 60 hertz
Power Device Features: 3 kV isolation, LED indicators, Output voltage adjustment, Overheat protection, Overload protection, Overvoltage protection, Power boost
Power Provided: 120 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Max Input Current: 10 ampere
Efficiency: 89% (230VAC)
Provided Voltage: 12 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
MTBF: 1,700,000 Hours
Dimensions and Weight
Height: 5.1 inch
Width: 1.3 inch
Depth: 4.8 inch
Weight: 14.11 ounce
Certifications and Listing
Compliant Standards: Class II, DIN VDE 0100-410, EMC 2014/30/EU, EN 50121-4, EN 50178, EN 55011, EN 60204-1, EN 60715, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-4, EN 61000-4-6, EN 61000-6-2, EN 61000-6-3, EN 61558-2-16, EN55022, IEC 60950-1, IEC 61709, IP20, LVD 2006/95/EC, NDAA, REACH, RoHS, SN 29500, UL 508, UL 60950-1, VDE 0160, VDE 0805, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - return to factory - 1 year
