Product Information

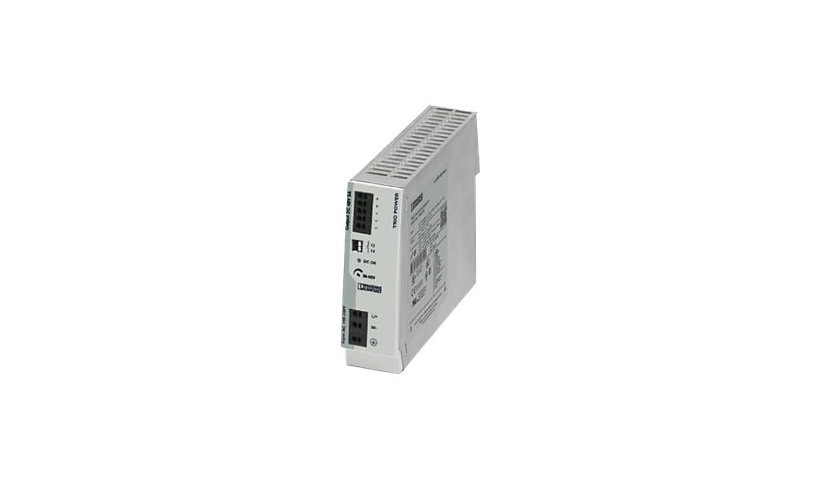

The Perle TRIO-PS-2G/1AC/48DC/5 (29031598) is a 240W, 48V industrial DIN rail supply for 85 to 264V single phase input with about 91% efficiency and a 2,000,000 hour MTBF, holding output steady through grid swings. It is an industrial supply, not a laptop charger.
Key Features
- 240W, 48V
- DIN rail mount
- 91% efficiency
- 2,000,000 hr MTBF
- Regulated output
- Not a laptop charger
Product Information
Brand: Perle
Manufacturer: Perle Systems
Product Line: Perle
Model: TRIO-PS-2G/1AC/48DC/5
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Gray
Power
Input Wiring: 1-phase
Input Voltage Range: AC 85 - 264 V
Required Voltage: AC 100-250 volt
Power Provided: 240 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Efficiency: 90.5% (120VAC), 91% (230VAC)
Provided Voltage: 48 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
MTBF: 2,000,000 Hours
Dimensions and Weight
Height: 5.1 inch
Width: 1.7 inch
Depth: 6.3 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: cULus, EAC, EMC 2014/30/EU, EN 50121-4, EN 55011, EN 60204-1, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 Class A, EN55022, IEC 60068-2-27, IEC 60950-1, UL, UL 508, UL 60950-1, VDE 0805
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
