Product Information

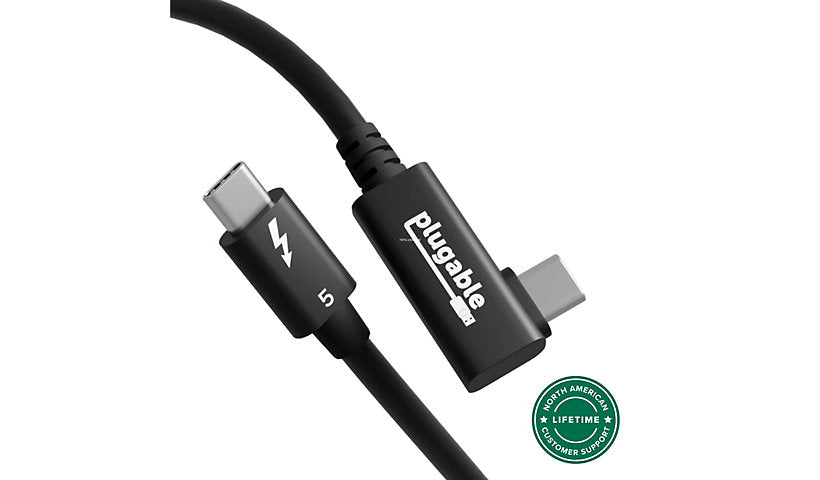

The Plugable TBT5-240W80R is an Intel-certified Thunderbolt 5 cable for professionals, with up to 80 Gbps of bidirectional data, double the speed of Thunderbolt 4. Bandwidth Boost up to 120 Gbps supports dual 8K 60Hz or triple 4K 144Hz setups without extra adapters, and a reinforced 90-degree connector reduces port strain. Thunderbolt 5 offers 80 Gbps bidirectional bandwidth, and Boost Mode reallocates the lanes to provide 120 Gbps in one direction and 40 Gbps in the other for display-heavy work such as multiple 8K monitors. It delivers 8K 60Hz video and up to 240W charging through one connection. The cable is Intel Thunderbolt certified and backward compatible with Thunderbolt 4/3 and USB4. Backed by a 2 year limited warranty.
Key Features
- 80 cm right-angle Thunderbolt 5 cable
- 80 Gbps, up to 120 Gbps with Boost
- 240W EPR charging
- Dual 8K 60Hz or triple 4K 144Hz
- Intel Thunderbolt certified, 2-year warranty
Product Information
Brand: Plugable
Manufacturer: Plugable Technologies
Product Line: Plugable
Model: TBT5-240W80R
I/O Cable Type: Thunderbolt cable
Cable Subcategory: Thunderbolt
Connectivity
Connector A: 24 pin USB-C
Connector A Gender: Male
Connector A Quantity: 1
Connector B: 24 pin USB-C
Connector B Gender: Male
Connector B Quantity: 1
Connector Details: 24 pin USB-C - male - right-angled
Technical Information
Cable Characteristic: Up to 120 Gbps data rate, Up to 80 Gbps (bi-directional)
Key Capabilities: 4K144Hz support, 8K60Hz support, Passive cable, USB Power Delivery (240W)
Dimensions and Weight
Cable Length: 31.5 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Left Connector Design: Straight
Right Connector Design: Right-angled
Certifications and Listing
Compliant Standards: USB4 / Thunderbolt 3 / Thunderbolt 4 / Thunderbolt 5 / DisplayPort 2.1
Warranty
Limited Warranty: 2 Year
