Product Information

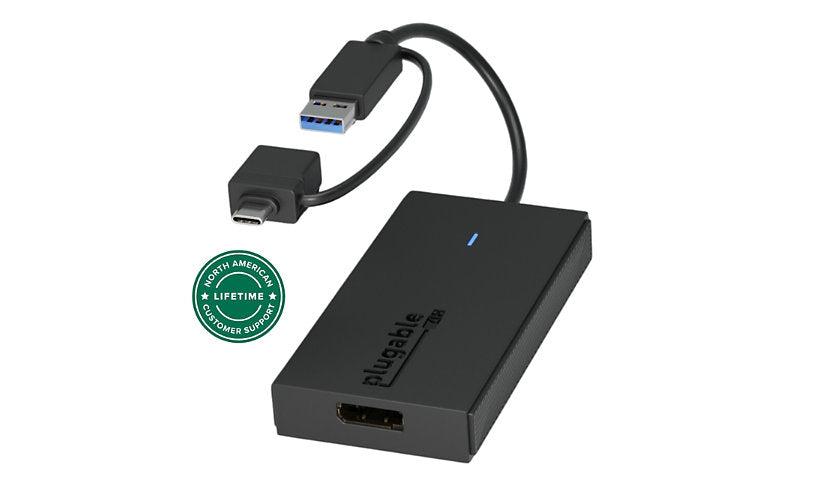

Plugable's UGA-DP-S adds a DisplayPort monitor to Windows and Mac systems through USB-C or USB 3.0, extending or mirroring at up to 2560 x 1440 at 60 Hz, even on M1, M2 or M3 Macs limited to one external display. It uses the Silicon Motion SM768 graphics chip.
Key Features:
- USB-C / USB-A to 1x DisplayPort
- Up to 2560 x 1440 at 60 Hz
- Silicon Motion SM768
- Windows and macOS (incl. M1-M3)
Specifications:
- Brand: Plugable
- Manufacturer Part Number: UGA-DP-S
- Output Interface: DisplayPort
- Graphics Controller Model: SM768
- Graphics Processor Manufacturer: Silicon Motion
- Host Interface: USB-C / USB-A
- Maximum External Resolution: 3840× 2160
- Output Ports: DisplayPort
- Video Signal: DisplayPort
- Refresh Rate at Max Resolution: 30 Hz
- Supported Operating Systems: Apple macOS 10.14 or later, Microsoft Windows 10 / 11
- Product Category: Graphics card
- Adapter Features: 2-channel Embedded Audio
- Standards & Compliance: DisplayPort 1.2
- Warranty: 2-year limited warranty
