Product Information

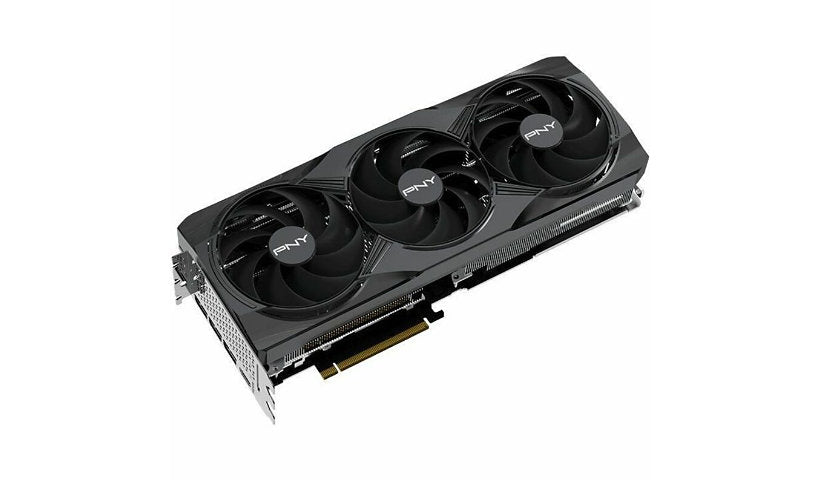

The PNY GeForce RTX 5080 is a Blackwell based graphics card with 16 GB of GDDR7 memory and a triple fan cooler. It boosts up to 2.62 GHz, connects over PCI Express 5.0 x16 and supports DLSS 4 and NVIDIA Reflex 2 for gaming and creative work. This is a graphics card listed in the CPU category.
Key Features
- NVIDIA GeForce RTX 5080 with 16 GB GDDR7
- 2.30 GHz GPU clock, up to 2.62 GHz boost
- 3 DisplayPort plus HDMI, up to 4 monitors at up to 7680 x 4320
- PCI Express 5.0 x16, DLSS 4 and Reflex 2
- 360 W max power, 850 W power supply recommended
- Triple-slot card with triple fan cooler, 12.9 inches long
Product Information
Platform Supported: PC
Brand: PNY
Manufacturer: PNY Technologies
Product Type: Graphic Card
Network and Communication
Features: Triple-fan Cooler
Connectivity
DisplayPort: Yes
DisplayPort Outputs: 3
Host Interface: PCI Express 5.0 x16
HDMI: Yes
Power
Max Power Consumption: 360 watt
Power Connector: 1x 16-pin, 3x 8-pin
Power Supply Wattage: 850 watt
Memory and Processor
Chipset Series: RTX
Chipset Line: GeForce
GPU Clock: 2.30 GHZ
Boost Clock Speed: 2.62 GHZ
AI-Powered: Yes
Chipset Manufacturer: NVIDIA
Chipset Model: RTX 5080
RAM Installed: 16 GB
Memory Technology: GDDR7
Technical Information
Monitors Supported: 4
Maximum Digital Display Resolution: 7680 x 4320
Physical Characteristics
Slot Space Required: Triple
Form Factor: Plug-in Card
Dimensions and Weight
Height: 2.4 inch
Width: 5.4 inch
Length: 12.9 inch
