Product Information

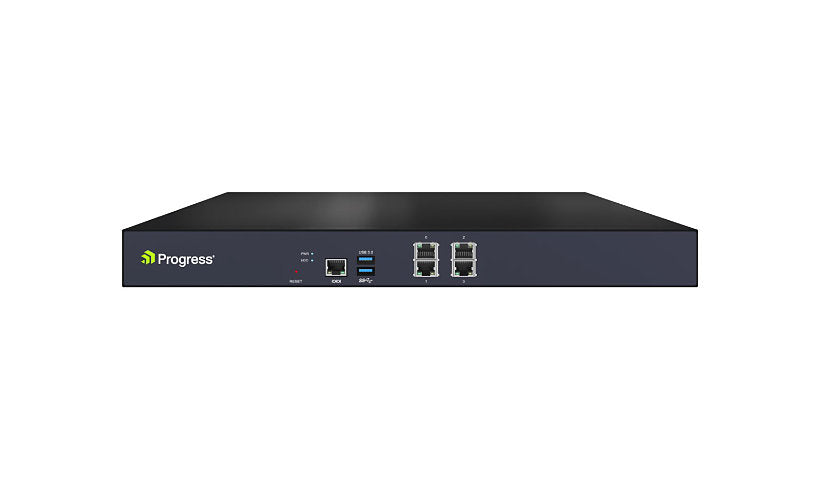

The LoadMaster X1 from Progress Kemp is a 1U entry hardware load balancer, not a firewall. It handles 1 Gbps at Layer 4 and Layer 7, 25,000 Layer 4 connections per second, 4 million concurrent Layer 4 and 32,800 Layer 7 connections, 1 Gbps bulk encryption and 1,000 SSL transactions per second (2k key). It has four Gigabit RJ-45 ports, a console, VGA, 4 GB of RAM and 500 GB of storage, and draws about 28 W. The description swaps the Layer 4 and Layer 7 connection figures.
Key Features
- 1 Gbps L4 and L7 throughput
- 4M L4 connections
- 1,000 SSL TPS (2k key)
- 4 x 1G RJ-45
- 4 GB RAM, 500 GB storage
- 1U, about 28 W
Product Information
Brand: Progress
Manufacturer: Kemp Technologies
Product Line: Progress Kemp LoadMaster
Model: X1
Product Type: Load balancing device
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: IMAP, POP3, SMTP, TCP, UDP
Remote Management: HTTP, HTTPS, SNMP, SSH
Authentication Method: Active Directory, LDAP, OIDC, RADIUS, SAML, X.509 certificates
Encryption: FIPS 140-2 Level 1, SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Concurrent Layer 4 connections: 4000000, Concurrent Layer 7 connections: 32800
Network Device: Bulk encryption: 1 Gbps, Connection rate (layer 4): 25000 connections per second, Layer 4 application throughput: 1 Gbps, Layer 7 application throughput: 1 Gbps, Request rate (layer 4): 78000 requests per second, Request rate (layer 7 HTTP): 70000 requests per second, SSL throughput (2k key): 1000 transactions per second
Features: 2-factor authentication, Access Control List (ACL) support, Certificate Signing Request (CSR) generation, Chained Failover, Cross-site Request Forgery (CSRF) protection, Cross-Site Scripting protection, Data Loss Prevention (DLP), DDoS Protection, Direct Server Return (DSR), EV (Extended Validation) certificates support, Global Server Load Balancing (GSLB), HTTP/2 support, ICMP health checking, Intrusion Prevention System (IPS), IP address filtering, IPFIX, IPsec and tunneling, IPv6 support, Layer 7 switching, OCSP support, Pre-Authentication, Quad-core CPU, Scalable, Server Name Identification (SNI) support, SNAT support, SQL injection protection, Stateful Failover, Syslog support, VLAN trunking, Web Application Firewall (WAF), Web interface, Weighted Round Robin (WRR)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x VGA, 4 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 28.44 watt
Power Provided: 65 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
Processors Installed: 1
Clock Speed: 2.2 GHZ
RAM Installed: 4 GB
Hard Drive Capacity: 500 GB
Port Expansion Hard Drive Type: HDD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 16.9 inch
Depth: 12.2 inch
Weight: 8.31 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP)
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
