Product Information

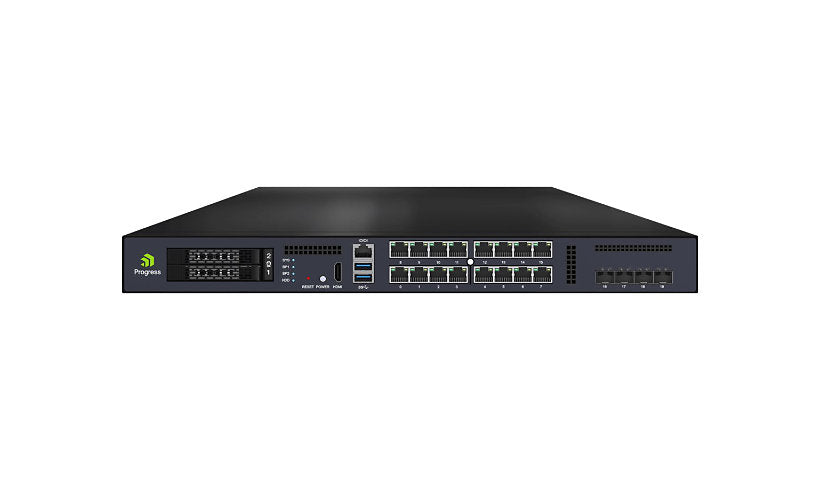

The LoadMaster X15-NG from Progress Kemp is a 1U hardware load balancer, not a firewall. It handles 15.8 Gbps at Layer 4 and 15 Gbps at Layer 7, 600,000 Layer 4 connections per second, 35 million concurrent Layer 4 and 262,500 Layer 7 connections, 10 Gbps bulk encryption and 15,000 SSL transactions per second (2k key). It has sixteen Gigabit RJ-45 ports, four 10G SFP+ ports, 32 GB of RAM, 1 TB of storage and dual redundant power supplies. The description swaps the Layer 4 and Layer 7 connection figures.
Key Features
- 15.8 Gbps Layer 4 throughput
- 35M L4 connections
- 15,000 SSL TPS (2k key)
- 16 x 1G RJ-45 + 4 x 10G SFP+
- 32 GB RAM, 1 TB storage
- 1U, dual redundant PSU
Product Information
Brand: Progress
Manufacturer: Kemp Technologies
Product Line: Progress Kemp LoadMaster
Model: X15-NG
Product Type: Load balancing device
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IMAP, POP3, SMTP, TCP, UDP
Remote Management: HTTP, HTTPS, SNMP, SSH
Authentication Method: Active Directory, LDAP, OIDC, RADIUS, SAML, X.509 certificates
Encryption: FIPS 140-2 Level 1, SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Concurrent Layer 4 connections: 35000000, Concurrent Layer 7 connections: 262500
Network Device: Bulk encryption: 10 Gbps, Connection rate (layer 4): 600000 connections per second, Layer 4 application throughput: 15.8 Gbps, Layer 7 application throughput: 15 Gbps, Request rate (layer 4): 2000000 requests per second, Request rate (layer 7 HTTP): 1000000 requests per second, SSL throughput (2k key): 15000 transactions per second
Features: 2-factor authentication, Access Control List (ACL) support, Certificate Signing Request (CSR) generation, Chained Failover, Cross-site Request Forgery (CSRF) protection, Cross-Site Scripting protection, Data Loss Prevention (DLP), DDoS Protection, Direct Server Return (DSR), EV (Extended Validation) certificates support, Global Server Load Balancing (GSLB), HTTP/2 support, ICMP health checking, Intrusion Prevention System (IPS), IP address filtering, IPFIX, IPsec and tunneling, IPv6 support, Layer 7 switching, OCSP support, Pre-Authentication, Server Name Identification (SNI) support, SNAT support, SQL injection protection, Stateful Failover, Syslog support, VLAN trunking, Web Application Firewall (WAF), Web interface, Weighted Round Robin (WRR)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x HDMI, 16 x 1000Base-T - RJ-45, 2 x USB 3.0 - Type A, 4 x 10 Gigabit Ethernet - SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 81.2 watt
Power Provided: 450 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAID Levels: RAID 1
Processors Installed: 1
Clock Speed: 3.8 GHZ
RAM Installed: 32 GB
Hard Drive Capacity: 1 TB
Port Expansion Hard Drive Type: HDD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 18.9 inch
Depth: 16.9 inch
Weight: 31.97 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP)
Warranty
Service Activation: No
