Product Information

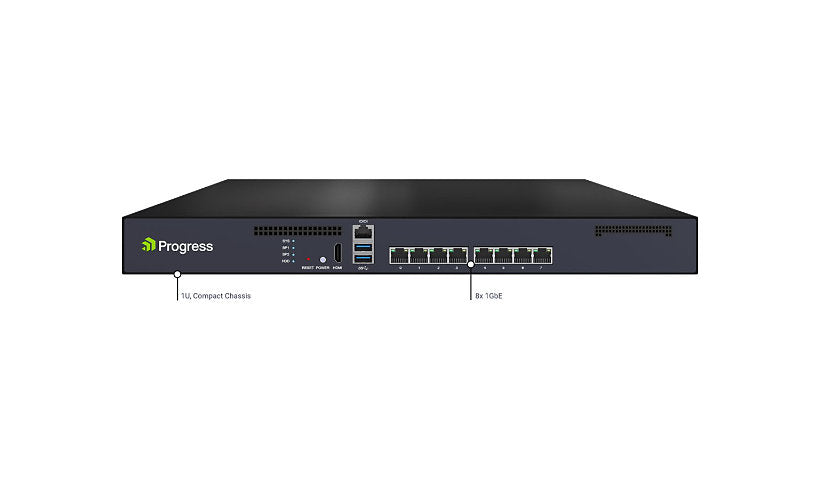

The LoadMaster X3-NG from Progress Kemp is a 1U hardware load balancer, not a firewall. It handles 3.6 Gbps at Layer 4 and 3.4 Gbps at Layer 7, 200,000 Layer 4 connections per second, 8.6 million concurrent Layer 4 and 125,000 Layer 7 connections, 2 Gbps bulk encryption and 1,700 SSL transactions per second (2k key). It has eight Gigabit RJ-45 ports, an RJ-45 console, HDMI, two USB 3.0 ports, 8 GB of RAM and 1 TB of storage, and draws about 45 W.
Key Features
- 3.6 Gbps Layer 4 throughput
- 8.6M L4 connections
- 1,700 SSL TPS (2k key)
- 8 x 1G RJ-45
- 8 GB RAM, 1 TB storage
- 1U, about 45 W
Product Information
Brand: Progress
Manufacturer: Kemp Technologies
Product Line: Progress Kemp LoadMaster
Model: X3-NG
Product Type: Load balancing device
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: IMAP, IPSec, NTP, POP3, SMTP, TCP, UDP
Remote Management: HTTP, HTTPS, SNMP, SSH
Authentication Method: Active Directory, LDAP, OIDC, RADIUS, SAML, X.509 certificates
Encryption: FIPS 140-2 Level 1, SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Concurrent Layer 4 connections: 8600000, Concurrent Layer 7 connections: 125000, SSL transactions per second: 1700
Network Device: Bulk encryption: 2 Gbps, Connection rate (layer 4): 200000 connections per second, Layer 4 application throughput: 3.6 Gbps, Layer 7 application throughput: 3.4 Gbps, Request rate (layer 4): 500000 requests per second, Request rate (layer 7 HTTP): 300000 requests per second, SSL throughput (2k key): 1700 transactions per second
Features: 2-factor authentication, Access Control List (ACL) support, Allow/Deny List, Certificate Signing Request (CSR) generation, DDoS Protection, Direct Server Return (DSR), EV (Extended Validation) certificates support, Global Server Load Balancing (GSLB), High Availability, HTTP/2 support, ICMP health checking, Intrusion Prevention System (IPS), IP address filtering, IPFIX, IPsec and tunneling, IPv6 support, Layer 7 switching, OCSP support, Pre-Authentication, Quad-core CPU, Server Load Balancing (SLB), Server Name Identification (SNI) support, SNAT support, Stateful Failover, VLAN trunking, Web Application Firewall (WAF), Weighted Round Robin (WRR)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x HDMI, 2 x USB 3.0 - Type A, 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 45 watt
Power Provided: 300 watt
Memory and Processor
Processors Installed: 1
Clock Speed: 2.3 GHZ
RAM Installed: 8 GB
Hard Drive Capacity: 1 TB
Port Expansion Hard Drive Type: HDD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: HDD activity, System
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 16.9 inch
Depth: 11.8 inch
Weight: 14.33 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP)
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
