Product Information

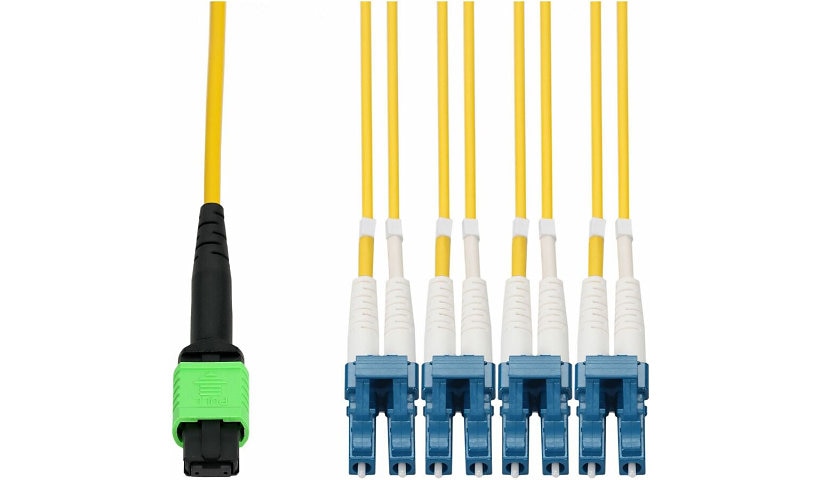

This 7 meter (23ft) yellow fanout cable breaks out a single MPO/APC (female) connector into eight LC/UPC (male) connectors, arranged as four duplex pairs. It is a straight-through design for high-speed data transfer. OS2 is a standard 9/125 micron single mode fiber, defined in ISO/IEC 11801, that is usually run at 1310 nm and 1550 nm wavelengths with a maximum attenuation of 1 dB/km.
The jacket is rated OFNR (optical fiber, nonconductive, riser), which makes the cable a good choice for indoor fiber runs.
Every cable is fully compliant for your networking needs, and using it will not void or affect your OEM equipment warranty, a protection backed by federal law.
Specifications:
Brand: Proline
Manufacturer part number: PRO-MPO-4LC7M9SMF
Cable type: Fan-out Cable
Fiber mode: Singlemode
Core/cladding: 9/125 µm
Wiring: Straight-through
Jacket: OFNR, Riser
Features: Angled Physical Contact (APC), Stranded
Length: 7 m (22.97 ft)
Color: Yellow
Works with: Network Device
