Product Information

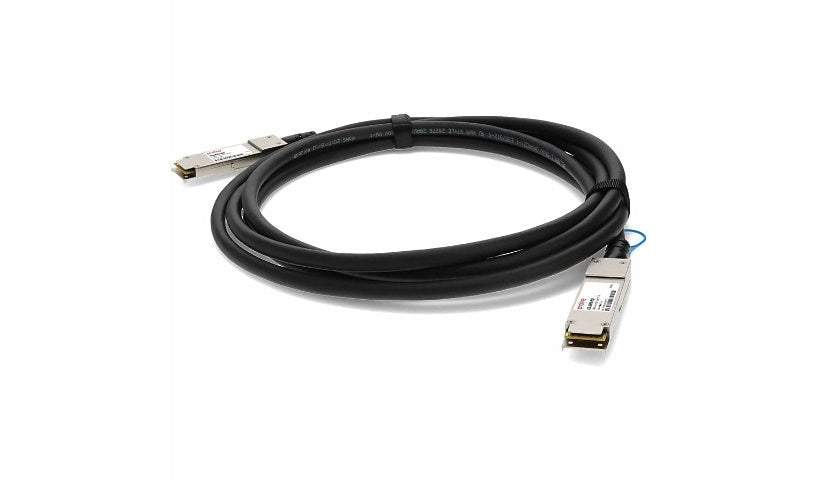

This passive twinax copper direct attach cable is built as a drop-in replacement for the Dell 470-ABPW. It links QSFP28 to QSFP28 ports at 100GBase-CU with a maximum reach of 0.5 m (1.6ft).
Before it ships, every cable is programmed, given its own serial number and tested with live data traffic in the target application, so it works as expected out of the box. It follows MSA (Multi-Source Agreement) standards, is TAA (Trade Agreements Act) compliant and is backed by a limited lifetime warranty.
Specifications:
Brand: Proline
Manufacturer part number: 470-ABPW-PRO
Cable type: Network Cable
Connector gender: male on both ends
Data rate: 100 Gbit/s
Features: Booted, EMI Protection, Lead-free, Passive
Length: 1.64 ft
Height: 0.5 inch
Width: 0.5 inch
Weight: 0.30 lb
Works with: Network Device
Quantity in package: 1
Country of origin: United States/United Kingdom
TAA compliant: Yes
Warranty: Lifetime
Link: up to 100 Gbps bidirectional
Standard: QSFP28 MSA
Supply voltage: single 3.3 V, low power
Inputs and outputs: AC coupled
Housing: all-metal for EMI performance
Impedance: 100 ohm differential
Temperature range: 0 to 70°C
