Product Information

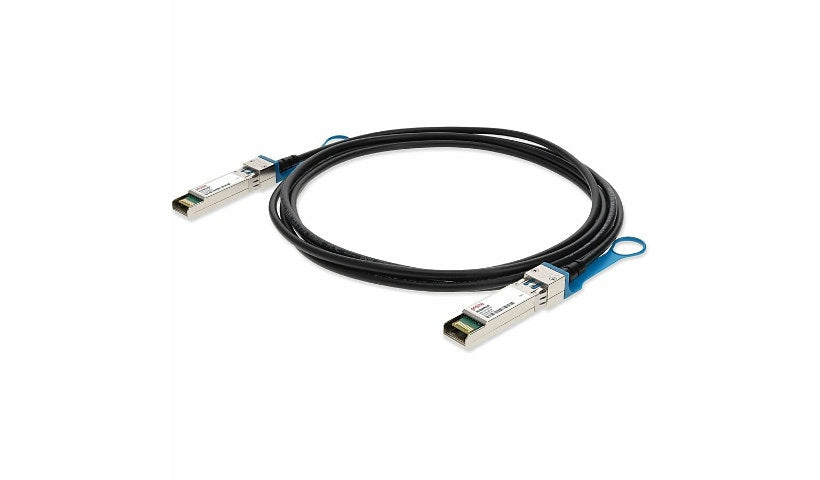

This dual OEM passive twinax copper direct attach cable is coded on each end for a different brand: one end works as a Cisco SFP-H10GB-CU3M and the other as a Mellanox MC3309130-003. It links SFP+ ports at 10GBase-CU with a maximum reach of 3 m (9.8ft).
Each end starts up and behaves just like the matching Cisco or Mellanox cable, and the cable is built to meet or beat both makers' specs. Every unit is programmed, serialized and tested with live data traffic before it ships. It follows MSA (Multi-Source Agreement) standards, is TAA (Trade Agreements Act) compliant and is backed by a limited lifetime warranty.
Specifications:
Brand: Proline
Manufacturer part number: PRO-SCISMX-PDAC3M
Cable type: Network Cable
Connector gender: male on both ends
Data rate: 10.3 Gbit/s
Jacket: CL2, FT4
Features: EMI Protection, Lead-free, Passive
Length: 3 m (9.84 ft)
Height: 0.5 inch
Width: 0.5 inch
Weight: 0.50 lb
Works with: Network Device, Transceiver
Quantity in package: 1
Country of origin: United States/United Kingdom
TAA compliant: Yes
Warranty: Lifetime
Link: up to 10 Gbps bidirectional
Standards: SFF-8431, 10GFC
Impedance: 100 ohm differential
Inputs and outputs: AC coupled
Supply voltage: single 3.3 V
Temperature range: 0 to 70°C
