Product Information

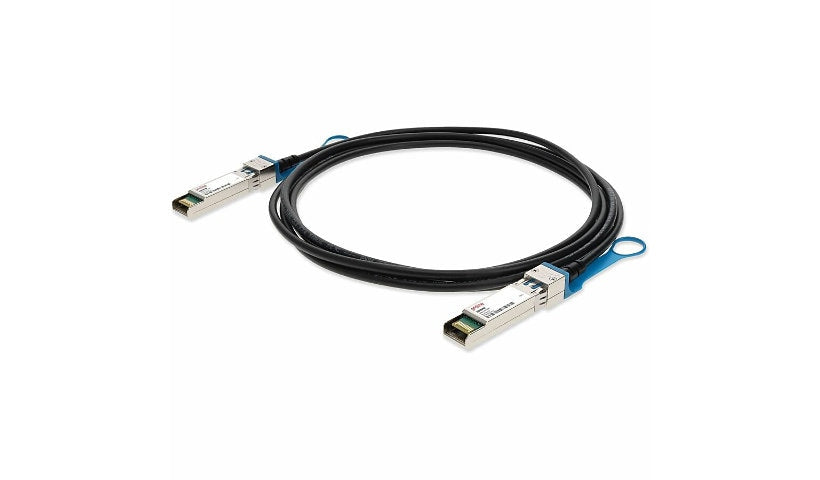

This passive twinax copper direct attach cable is built as a drop-in replacement for the Extreme Networks 10304-2M. It links SFP+ to SFP+ ports at 10GBase-CU with a maximum reach of 2 m (6.6ft).
Before it ships, every cable is programmed, given its own serial number and tested with live data traffic in the target application, so it works as expected out of the box. It follows MSA (Multi-Source Agreement) standards, is TAA (Trade Agreements Act) compliant and is backed by a limited lifetime warranty.
Specifications:
Brand: Proline
Manufacturer part number: 10304-2M-PRO
Cable type: Network Cable
Connector gender: male on both ends
Data rate: 10.3 Gbit/s
Jacket: CL2, FT4
Features: EMI Protection, Lead-free, Passive
Length: 2 m (6.56 ft)
Height: 0.3 inch
Width: 0.3 inch
Weight: 0.30 lb
Works with: Network Device
Quantity in package: 1
Country of origin: United States/United Kingdom
TAA compliant: Yes
Warranty: Lifetime
Link: up to 10 Gbps bidirectional
Standards: SFF-8431, 10GFC
Impedance: 100 ohm differential
Inputs and outputs: AC coupled
Supply voltage: single 3.3 V
Temperature range: 0 to 70°C
