Product Information

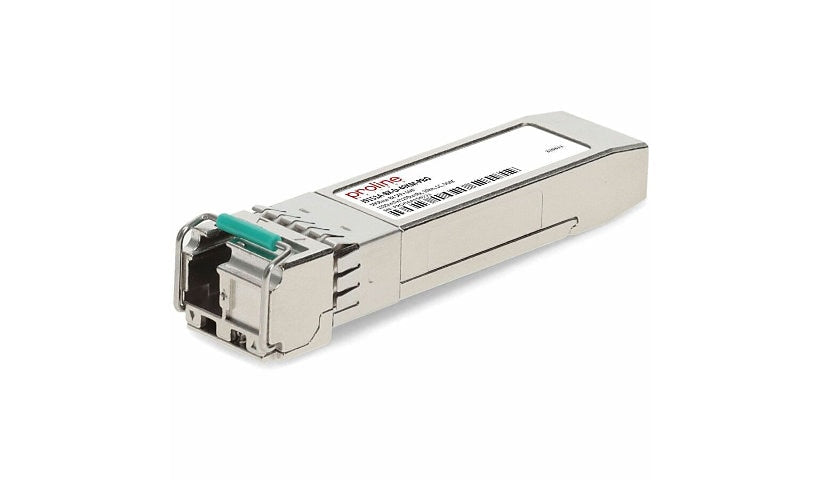

The Proline J9151A-BX-D-40KM-PRO is a 10GBase-BX bidirectional SFP+ optic coded to work like the matching HP part. It sends at 1330 nm and receives at 1270 nm over a single strand of single mode fiber with an LC connector, reaching up to 40 km, and must pair with a module of the opposite wavelengths. It is hot swappable, supports digital optical monitoring, runs from 0 to 70 °C and is TAA compliant.
Key Features
- 10GBase-BX BiDi
- 1330 nm Tx / 1270 nm Rx
- Reach up to 40 km
- HP J9151A-BX compatible
- Digital optical monitoring
- TAA compliant
Product Information
Brand: Proline
Manufacturer: Proline
Product Type: SFP+
Usage: Data Networking, Optical Network
Compatibility: Compatible OEM: HP,Compatible With OEM Part Number(s): J9151A-BX-D-40KM
Included Quantity: 1
Country of Origin: United States/United Kingdom
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet
Network Technology: 10GBase-BX
Max Distance Supported: 40 kilometre
Fiber Mode Supported: Single-mode
Optical Wave Length: 1270 nanometer, 1330 nanometer
Features: Bi-Directional (BiDi), Digital Optical Monitoring (DOM), Hot Swappable
Connectivity
Ports: 1
Connector Type: LC
Interfaces & Port Details: 1 x 10GBase-BX Network
Technical Information
Min Operating Temperature: 32
Max Operating Temperature: 158
Physical Characteristics
Form Factor: Hot-swappable
Dimensions and Weight
Height: 0.4 inch
Width: 0.6 inch
Depth: 2.2 inch
Weight: 0.20 lb
Certifications and Listing
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
