Product Information

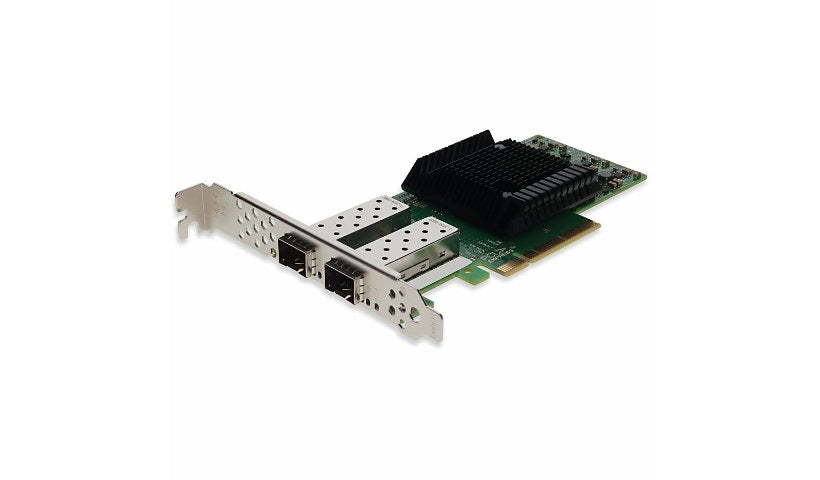

The Proline MCX4121A-XCAT-PRO is a dual port 10 Gigabit card with two open SFP+ slots on a PCI Express x8 interface, sold as a compatible alternative for the Mellanox MCX4121A-XCAT and shipped with tall and short brackets. You can fit multimode or single mode SFP+ optics of your choice, and it supports VLAN filtering. It is not TAA compliant. The spec lists an Intel XL710 chipset, the title names ConnectX-4 Lx and the description says ConnectX-5, so please confirm the controller before ordering.
Key Features
- 2 x open SFP+ slots
- 10 Gbps per port
- PCI Express x8
- Use your own optics
- Tall and short brackets
- Confirm controller
Product Information
Brand: Proline
Manufacturer: Proline
Product Line: ConnectX-4 Lx EN
Product Type: 10Gigabit Ethernet Card
Compatibility: FreeBSD 5, FreeBSD 6.0, Linux 2.4.x, Linux 2.6.x, Mac OS 10.x, Mac OS X 10.4.x Tiger, Novell 5.x, Novell 6.x, SCO UNIX, UnixWare, Windows, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 98, Windows 98 SE, Windows CE, Windows ME, Windows NT, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64
Included Quantity: 1
Country of Origin: China
Network and Communication
Max Data Transfer Rate: 80 Gbit/s
Max Transfer Distance: 328.08 ft
Fiber Mode Supported: Multi-mode, Single-mode
Connectivity
Expansion Slot Type: SFP+
Host Interface: PCI Express x8
SFP+ Slots: 2
Memory and Processor
Chipset Manufacturer: Intel
Chipset Model: XL710
Physical Characteristics
Supported Devices: PC
Dimensions and Weight
Height: 8 inch
Width: 4 inch
Depth: 1 inch
Weight: 6.40 ounce
Certifications and Listing
TAA Compliant: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
