Product Information

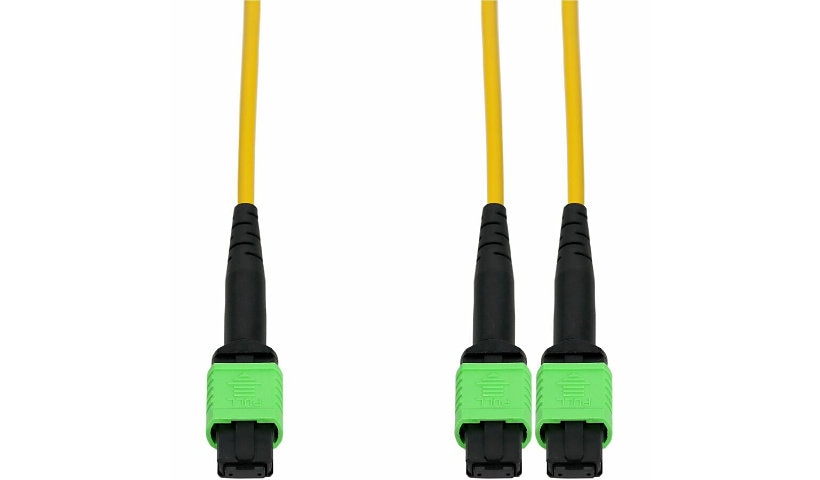

Built to work as a direct replacement for the NVIDIA Mellanox MFP7E40-N005, this 5 meter yellow cable splits one angled MPO (female) connector into two angled MPO (female) connectors. It uses Type-B (crossover) polarity. OS2 is a standard 9/125 micron single mode fiber, defined in ISO/IEC 11801, that is usually run at 1310 nm and 1550 nm wavelengths with a maximum attenuation of 1 dB/km.
The low smoke zero halogen (LSZH) jacket cuts down on toxic and corrosive gas if the cable burns and is self-extinguishing, which is why this material is the usual pick for tight, poorly ventilated spaces such as aircraft, rail cars and ships.
Every cable is fully compliant for your networking needs, and using it will not void or affect your OEM equipment warranty, a protection backed by federal law.
Specifications:
Brand: Proline
Manufacturer part number: MFP7E40-N005-PRO
Cable type: Patch Cable
Fiber mode: Singlemode
Core/cladding: 9/125 µm
Connector gender: female on both ends
Wiring: Crossover
Jacket: LSZH
Features: Angled Physical Contact (APC), Stranded
Length: 5 m (16.40 ft)
Color: Yellow
Works with: Network Device
Quantity in package: 1
