Product Information

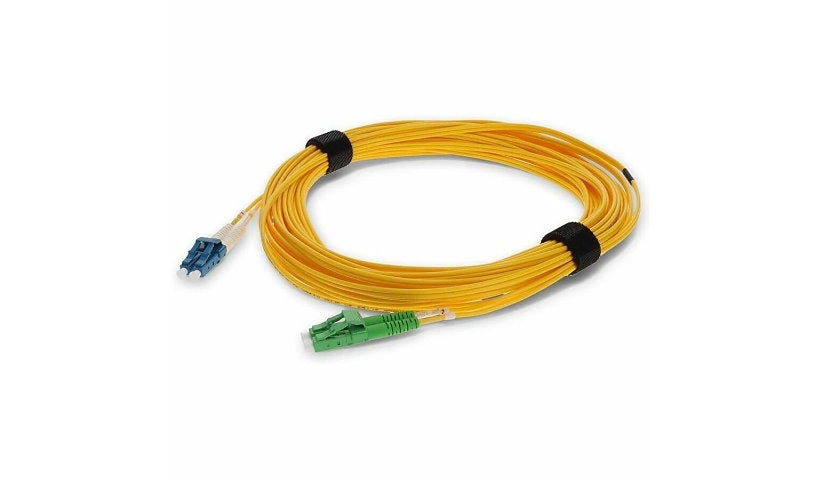

This 10 meter (32.8 ft) Proline duplex patch cable has an angled LC (male) connector on one end and a standard LC (male) connector on the other, which helps keep cable runs tidy where space at the port is tight. It uses OS2 9/125 single mode fiber, the standard single mode type defined in ISO/IEC 11801, usually run at 1310 nm and 1550 nm with a maximum attenuation of 1 dB/km.
Two fiber strands pair naturally with transceivers that send and receive at the same time. The yellow OFNR (optical fiber nonconductive riser) jacket is made for indoor runs, including vertical risers.
General
Brand: Proline
Part number: PRO-ALC-LC-10M9SMF
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 10 m (32.8 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Jacket: OFNR (riser rated)
Shielding: None
Color: Yellow
Features: Angled Connector, Angled Physical Contact (APC), Stranded
Connectors
Connectors: Angled LC (male) to LC (male)
Compatibility
Supported devices: Network Device, Transceiver
