Product Information

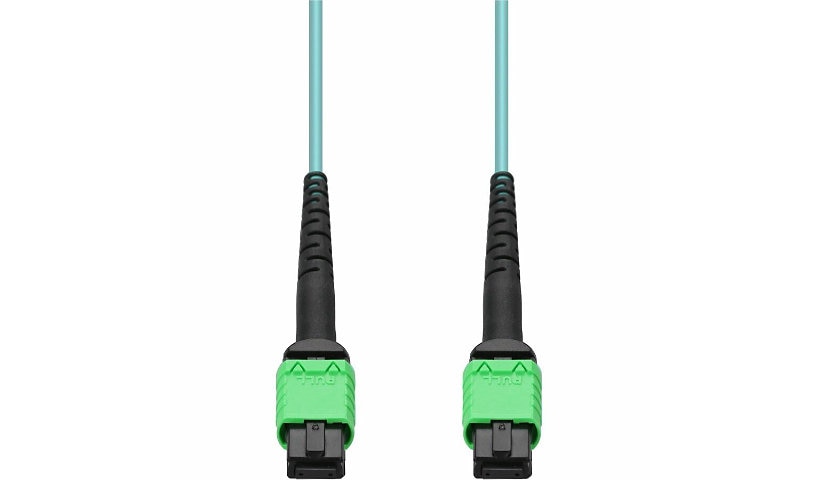

This 2 meter (6.6 ft) Proline trunk style cable carries 12 strands of om4 multimode 50/125 fiber between two female MPO connectors with angled (APC) polish. OM4 is laser optimized for fast, short reach links and supports 10 Gigabit Ethernet at up to 550 meters and 100G at up to 150 meters.
The aqua jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. The connectors use a standard boot, and Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-AMPOAMPO-2M5OM4
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Cable configuration: Crossover
Jacket: OFNR (riser rated)
Shielding: None
Color: Aqua
Features: Angled Physical Contact (APC), Fire Proof, Fire Resistant, Stranded
Connectors
Connectors: MPO/APC (female) to MPO/APC (female)
Polish: APC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.10 lb
Compatibility
Supported devices: Network Device
Typical use: Business, Data Center, Data Transmission, Indoor
Compliance and Warranty
TAA compliant: No
Country of origin: China
