Product Information

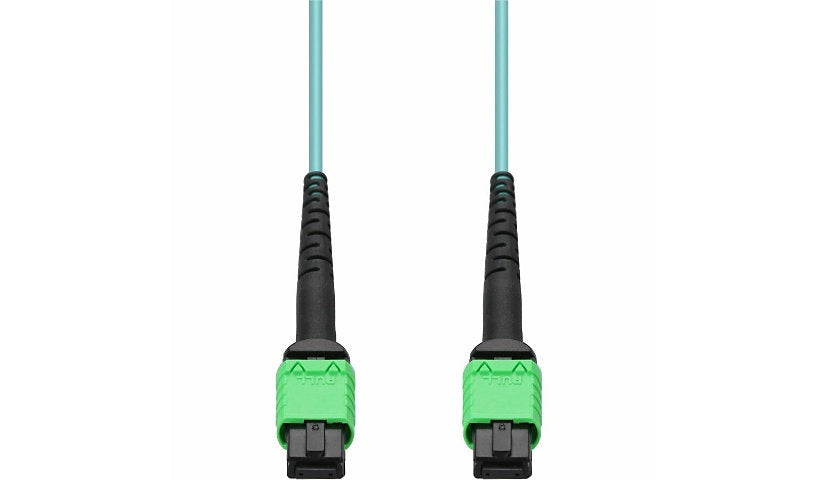

This 7 meter (23 ft) Proline trunk style cable carries 12 strands of om4 multimode 50/125 fiber between two female MPO connectors with angled (APC) polish, wired for Type-B (crossover) polarity. OM4 is laser optimized for fast, short reach links and supports 10 Gigabit Ethernet at up to 550 meters and 100G at up to 150 meters.
The aqua low smoke zero halogen (LSZH) jacket limits toxic smoke and fumes in a fire, which suits enclosed rooms and busy, poorly ventilated areas. The connectors use a standard boot, and Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-AMPOAMPO-7M5OM4LZ
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 7 m (23 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Cable configuration: Crossover
Jacket: LSZH (OFNG)
Shielding: None
Color: Aqua
Features: Angled Physical Contact (APC), Self-extinguishing, Stranded
Connectors
Connectors: MPO/APC (female) to MPO/APC (female)
Polish: APC
Compatibility
Supported devices: Network Device
Standards compatibility: MSA Compliant
