Product Information

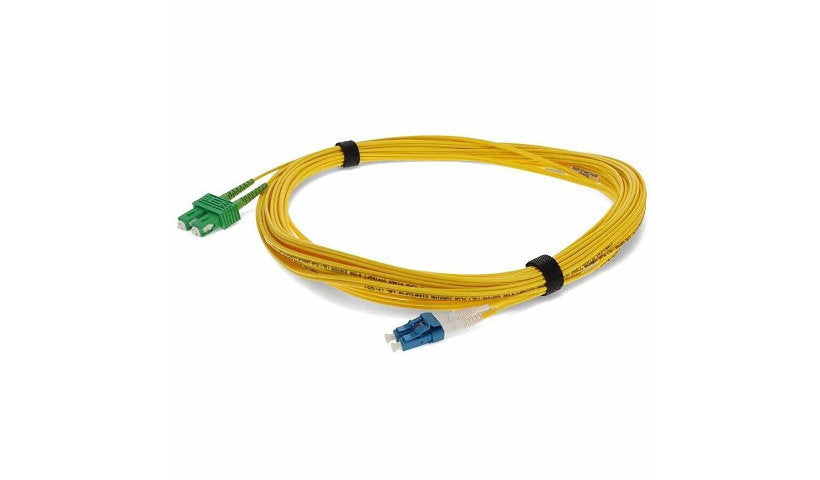

This 15 meter (49.2 ft) Proline duplex patch cable has an angle polished SC/APC connector on one end and an LC connector on the other, over OS2 9/125 single mode fiber. OS2 is designed for low signal loss over long runs and supports network speeds from 1G up to 100G.
The angled end face on the SC side cuts back reflection for equipment that calls for APC. The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-ASC-LC-15M9SMF
Cable type: Patch cable
Cable and Fiber
Length: 15 m (49.2 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Straight-through
Jacket: OFNR (riser rated)
Color: Yellow
Features: Angled Physical Contact (APC)
Connectors
Connectors: SC/APC (male) to LC (male)
Compatibility
Supported devices: Network Device
