Product Information

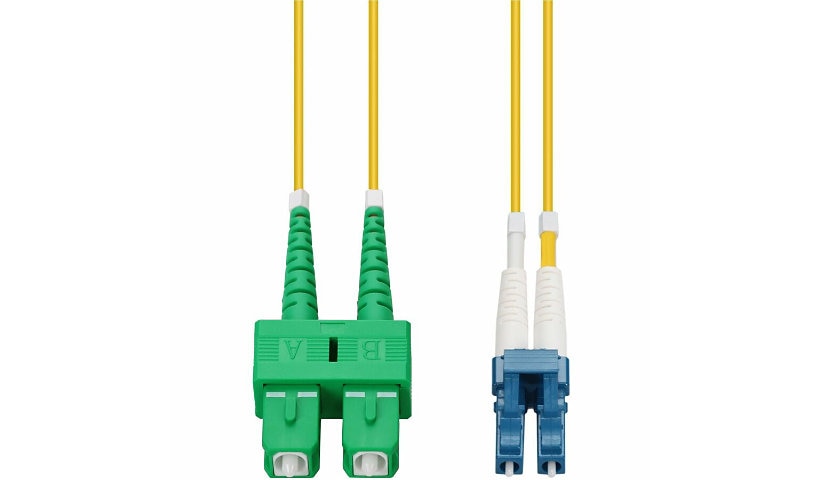

This 4 meter (13.1 ft) Proline duplex patch cable runs OS2 9/125 single mode fiber, with an SC/APC connector on one end and an LC connector on the other. OS2 is designed for low signal loss over long runs and supports network speeds from 1G up to 100G.
The angled (APC) end face cuts back reflection for equipment that calls for APC. The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-ASC-LC-4M9SMF
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 4 m (13.1 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Crossover
Jacket: OFNR (riser rated)
Shielding: None
Color: Yellow
Features: Angled Physical Contact (APC), Angled Physical Contact Polish, UPC Polished Connector
Connectors
Connectors: SC/APC (male) to LC (male)
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.20 lb
Compatibility
Supported devices: Network Device
Typical use: Indoor
Compliance and Warranty
TAA compliant: No
Country of origin: China
