Product Information

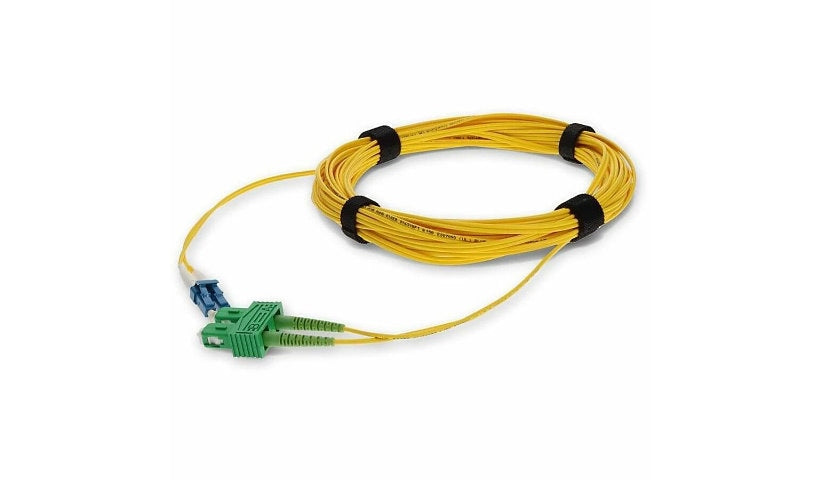

This 5 meter (16.4 ft) Proline duplex patch cable runs OS2 9/125 single mode fiber, with an SC/APC connector on one end and an LC connector on the other. OS2 is designed for low signal loss over long runs and supports network speeds from 1G up to 100G.
The angled (APC) end face cuts back reflection for equipment that calls for APC. The yellow jacket carries an OFNR riser rating, so the cable can be run vertically through building risers between floors where riser rated cabling is required. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-ASC-LC-5M9SMF
Cable type: Patch cable
Cable and Fiber
Length: 5 m (16.4 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Straight-through
Jacket: OFNR (riser rated)
Color: Yellow
Features: Angled Physical Contact (APC), Stranded
Connectors
Connectors: SC/APC (male) to LC (male)
Compatibility
Supported devices: Network Device
