Product Information

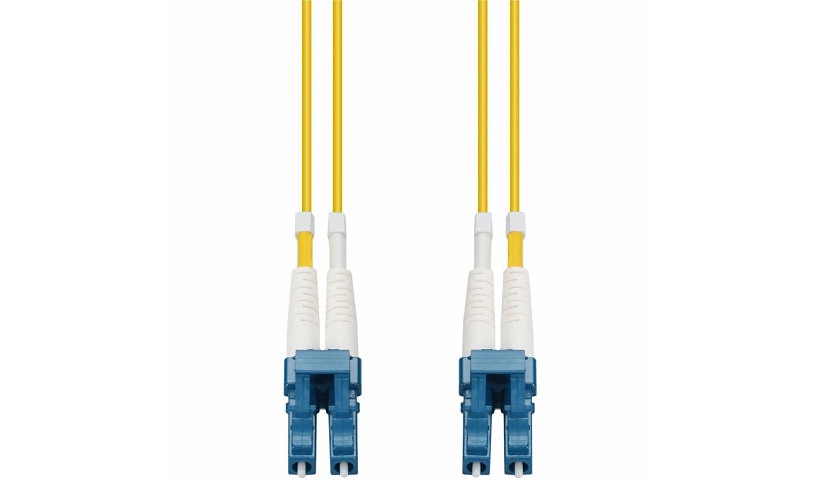

This 0.5 meter (1.6 ft) Proline patch cable runs on OS2 9/125 single mode fiber and has LC connectors on both ends. OS2 fiber is designed for low signal loss over long runs and supports network speeds from 1G up to 100G, so it works well for links between offices, data centers and industrial sites.
The duplex construction provides a separate fiber for transmit and receive. Connectors use a standard boot with UPC polished end faces. The yellow jacket is OFNP plenum rated, the highest fire rating for fiber, which makes it suitable for air handling spaces such as drop ceilings and ducts. Proline builds these cables to TIA standards.
General
Brand: Proline
Part number: PRO-LC-LC-0-5M9SMFP
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 0.5 m (1.6 ft)
Fiber: OS2 single mode, 9/125 µm
Cable mode: Duplex
Cable configuration: Crossover
Jacket: OFNP (plenum rated)
Shielding: None
Color: Yellow
Features: Bendable, Fire Resistant, Stranded, Ultra Physical Contact (UPC)
Connectors
Connectors: LC (male) to LC (male)
Polish: UPC
Physical and Environmental
Width: 0.3 inch
Height: 0.1 inch
Weight: 0.10 lb
Compatibility
Supported devices: Network Device
Compliance and Warranty
TAA compliant: No
Country of origin: China
